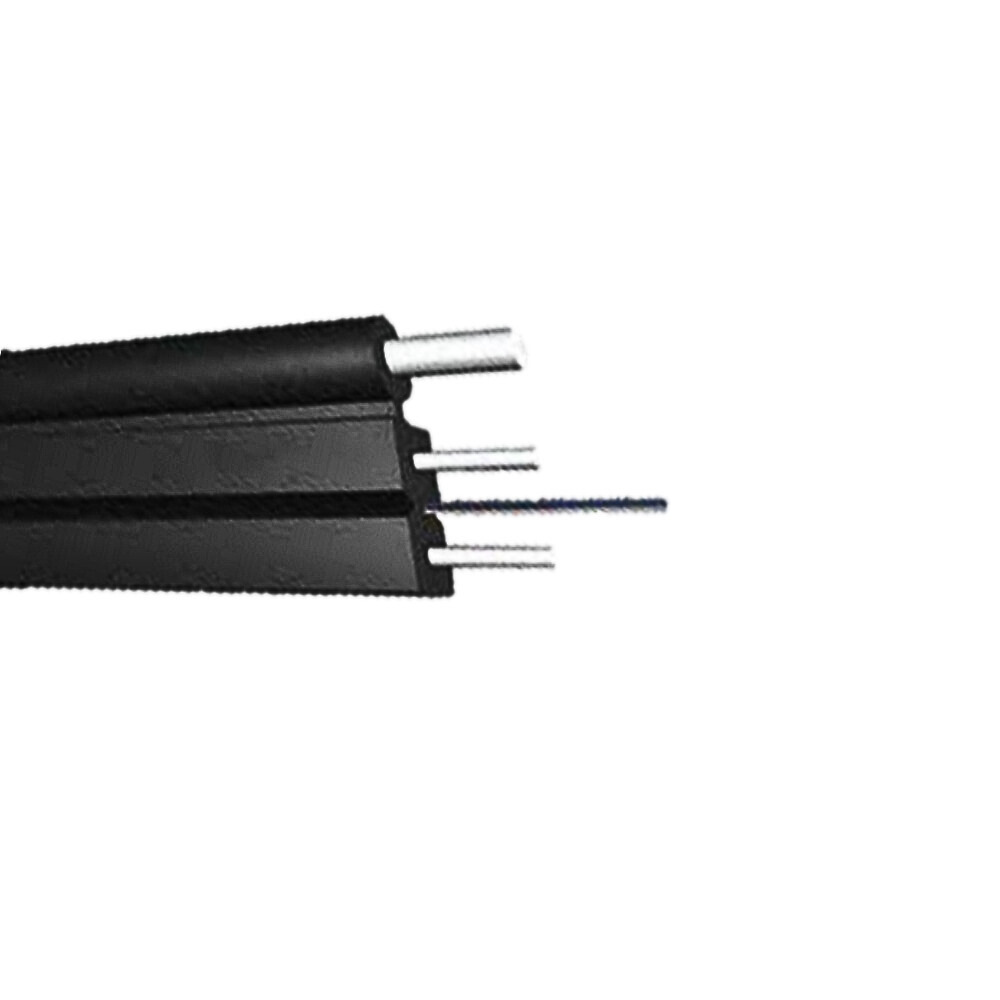

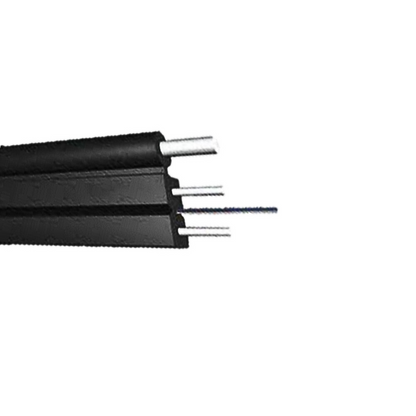

GJYXFCH-1B6 1KM Fiber

Fiber model:G657A1
Central reinforcement:2x 0.5mm FRP
Additional support:1x FRP with 1.0mm adhesive
Outer cover:LSZH (Low Smoke Zero Halogen)
Cable diameter:2.0 × 5.0 mm
Approximate weight:13 kg/km
Attenuation loss:≤0.35 dB/km at 1310nm, ≤0.21 dB/km at 1550nm
Tensile strength:440N (short term), 220N (long term)
Crush resistance:2200N/100mm (short), 1000N/100mm (long)
Minimum radius of curvature:80 mm untensioned, 40 mm tensioned
Temperature range:Installation: 0°C to +50°C, Operation: -40°C to +50°C
Dimensions:Length: 36 cm, Width: 33 cm, Height: 11 cm
Weight:17kg

TECHNICAL SHEET

Easy installation:Its flat, lightweight design allows for quick installation indoors and outdoors, without the need for complex tools.
Greater security:Dielectric (metal-free) materials that reduce electrical risks and facilitate wiring near sensitive installations.
Long-term reliability:High tensile and compressive strength, maintaining performance even in demanding environments.
Stable transmission:Very low attenuation that guarantees a clear and continuous signal, ideal for internet, voice and video.

Optical FiberGJYXFH 1B6 with FRP dielectric reinforcementand adhesive backing offer a practical, secure, and efficient option for FTTH connections. Its low weight, mechanical strength, and excellent optical performance make it the best choice for last-mile installations in urban and rural areas.

Its metal-free structure is ideal for applications where interference or electrical hazards are desired, while also facilitating handling and installation. This drop fiber adapts perfectly to today's connectivity requirements, ensuring performance and durability.
