Fiber GYXTC8Y-12B1 6KM

Fiber type:G.652D singlemode
Amount of fibers:12 threads

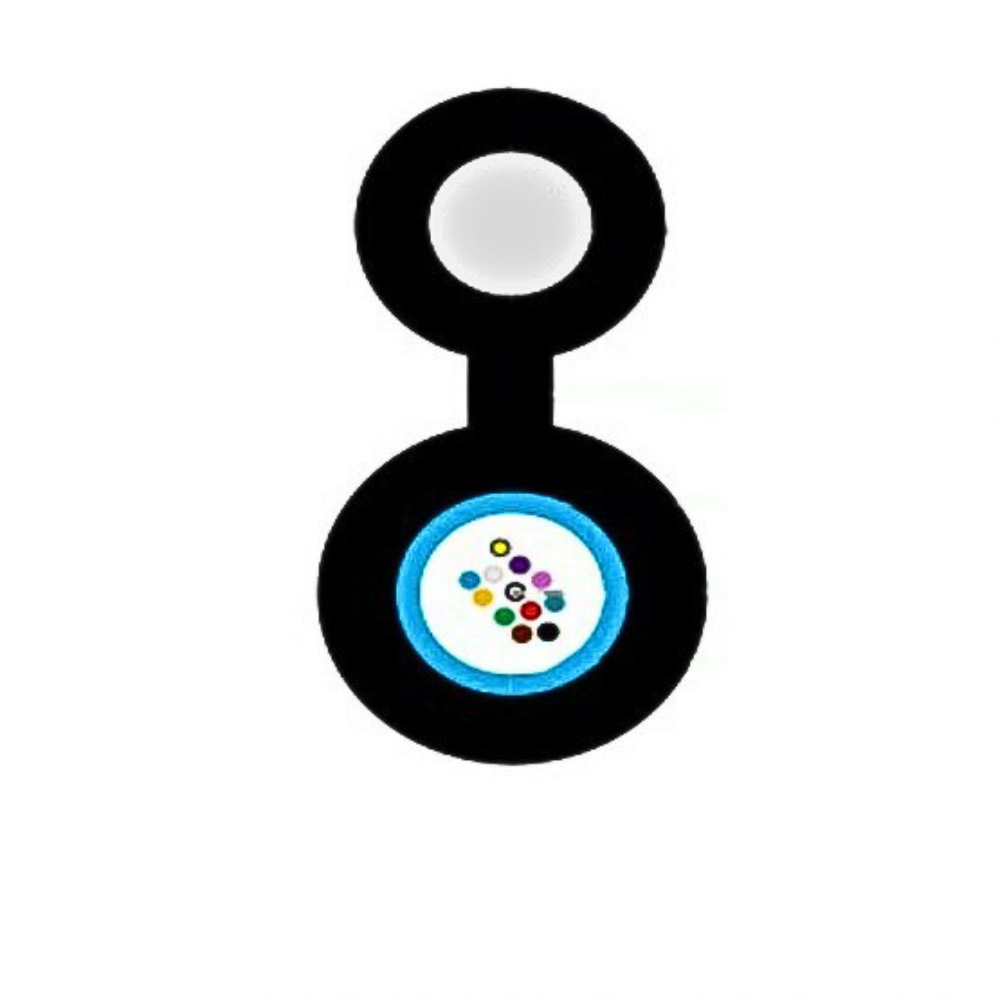

Structure:Loose central tube with gel filling
Messenger:1.83 mm ± 0.10 mm galvanized steel
Outer jacket:Black MDPE
Cable dimension (without messenger):3.8 mm ± 0.2 mm
Loose tube dimension:2.10 mm ± 0.10 mm
Fiber color:Standard (blue, orange, green, etc.)
Maximum attenuation:≤0.35 dB/km (1310nm), ≤0.22 dB/km (1550nm)
Roll length:6 km
Dimensions:102cm (length) × 75cm (width) × 102cm (height)
Weight:350kg

TECHNICAL SHEET

Greater resistance outdoors:Reinforced structure with a central loose tube, protective gel and galvanized steel messenger that withstands aerial installations and adverse weather conditions.
Quick and efficient installation:Figure-8 design with integrated messenger that facilitates laying and reduces installation costs.
Reliable long-distance transmission:G.652D technology with low attenuation, ideal for links up to 6 km without significant signal loss.
Total protection for your data:The inner gel protects against moisture, while the outer MDPE coating resists UV rays and physical damage.
Versatility in applications:Perfect for FTTH networks, ISP, telecommunications and government or industrial projects.

HeGYXTC8Y-12B1It is a high-strength fiber optic cable specifically designed for aerial installations. Its compact yet robust design, combined with a metal messenger and a durable outer jacket, ensures stability in windy, rainy, and constantly exposed to sunlight. This makes it the ideal choice for projects requiring durability, easy installation, and long-term optical performance.

Thanks to its 12-fiber single-mode core and compatibility with G.652D standards, the cable provides low attenuation and excellent transmission quality for data, video, and voice services. Whether in dense urban networks or rural areas, this cable is ready to maintain reliable, secure, and efficient connectivity.
