ADSS 12B1-120 fiber

Fiber type:G.652D singlemode
Number of fibers:12 threads

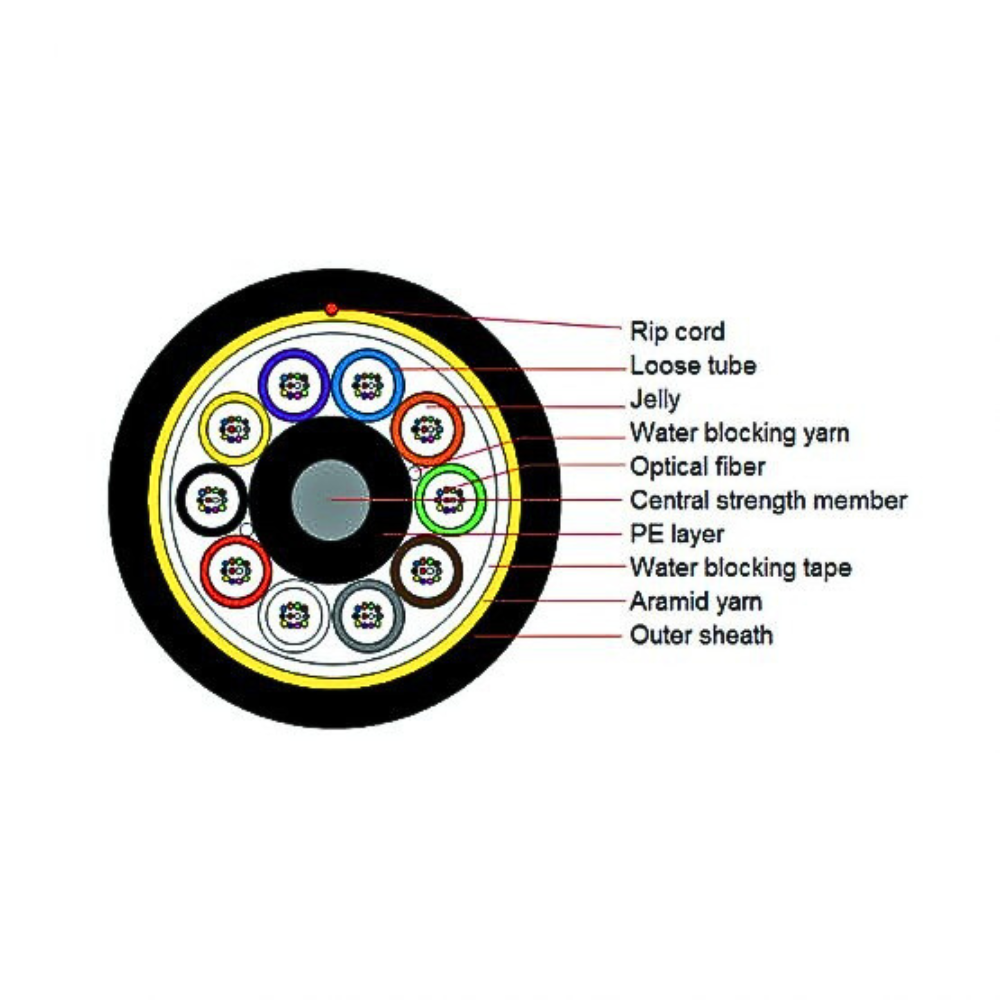

Structure:Gel-filled loose tube, FRP-reinforced core, water-blocking tape, aramid yarn, and polyethylene outer cover
Cable diameter:10.9 mm ±5%
Weight:85 kg/km ±10%
Maximum working voltage (MAT):2500 N
Crushing (short term):1000 N/100 mm
Minimum radius of curvature:10x diameter (static), 20x diameter (dynamic)
Operating temperature:-20 °C to +60 °C
Installation temperature:-5 °C to +50 °C
Maximum recommended span:120 m
Dimensions:115cm (length) × 75cm (width) × 115cm (height)
Weight:420kg

TECHNICAL SHEET

Overhead installation without metal support:Thanks to its ADSS (All-Dielectric Self-Supporting) design, it does not require a messenger wire or conductive elements.
High performance and durability:Protects fibers with gel against moisture and a robust outer cover for longer life.
Ideal for outdoors:It withstands operating temperatures from -20°C to +60°C and wind speeds of up to 100 km/h.
Reliable installation:Withstands tensile forces up to 2500 N and crushing forces of 1000 N/100mm without compromising fiber integrity.
Lightweight construction:Weighing approximately 85 kg/km, it facilitates handling and installation in the field.

Optical FiberADSS 12B1With a 120 m span, it is optimized for aerial installations without the need for metal supports, reducing costs and simplifying the field deployment process. Its robust design guarantees protection against traction, crushing, and harsh weather conditions. Additionally, its gel coating and water-blocking tape ensure integrity and stability in humid environments.

This solution is ideal for network deployments in rural, urban, or industrial areas where a resilient, low-maintenance infrastructure with high transmission quality is required. With 12 optical wires, it provides excellent communication capacity for FTTH, FTTB, or enterprise backbone networks. A secure and efficient option for medium- and long-term telecommunications projects.
