FTTH-008V (2 Units)

Model:FTTH-008V
Material:Durable ABS/PC
Maximum capacity:8 fibers (1 tray x 8F), up to 8 SC simplex adapters (LC, FC, MT optional)
Cable entries:1 uncut cable entry (10–16.5mm), 8 drop cable ports
Sealing structure:Mechanical sealing with waterproof PE ring
Degree of protection:IP65
Operating temperature:-40°C to +60°C
Lateral pressure:≥2000N/10cm
Loss due to excess in tray:≤0.01dB
Relative humidity:<95% (+40°C)
Insulation resistance:>2x10MΩ / 500V DC
Facility:Floor, wall, post or cabinet
Dimensions:Length: 20 cm, Width: 14 cm, Height: 5 cm
Weight:0.5kg

TECHNICAL SHEET

Flexible and easy installation:It can be mounted on a wall, pole, floor or cabinet, adapting to any environment.
Guaranteed protection:IP65 waterproof design with sealed ring protects fiber under harsh conditions.
Saving time on maintenance:Quick access with hinged lid and push button for easy inspection.
Efficient organization:Intelligent cable management and integrated splice tray prevent unnecessary bends.

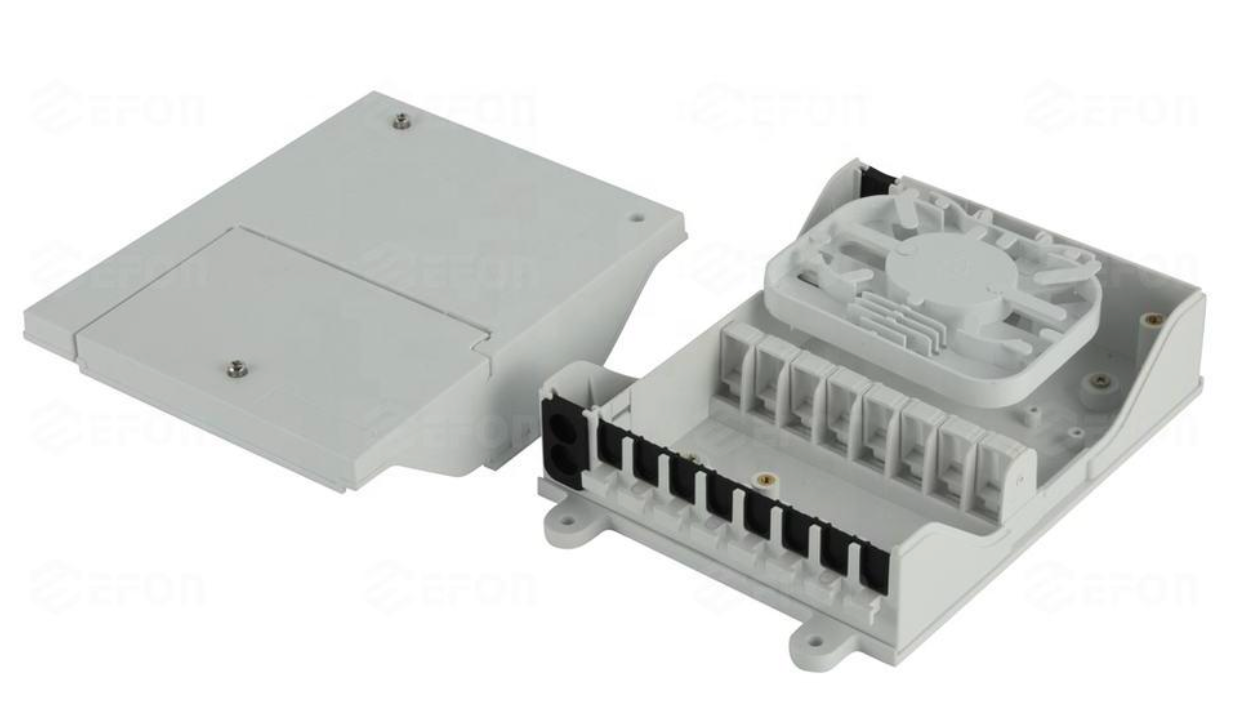

TheFTTH-008V Optical Distribution BoxIt is a state-of-the-art solution designed to facilitate the installation, protection, and organization of fiber optic networks in residential and commercial environments. Thanks to its compact and robust design, it is ideal for FTTH (Fiber to the Home) projects where a reliable, clean, and secure connection is required. Made with durable materials such as ABS/PC and with an IP65 protection rating, it guarantees excellent performance even in harsh weather conditions or confined spaces.

This enclosure supports up to 8 optical fibers and is compatible with SC, LC, FC, or MT connectors, providing great versatility depending on installation requirements. It features an integrated splice tray that keeps cables organized and prevents kinks, ensuring low signal loss. Additionally, its multiple mounting options (wall, pole, cabinet, or floor) allow it to easily adapt to different scenarios, from homes to buildings to industrial facilities.

The hinged, push-button cover streamlines maintenance tasks, reducing intervention times and allowing quick and organized access. This ease of use, combined with its excellent insulation and mechanical resistance, makes the FTTH-008V a reliable and durable option for installers, network technicians, and users seeking an efficient solution for fiber optic deployment. In short, it is an essential tool for ensuring the proper functioning and longevity of modern optical networks.
