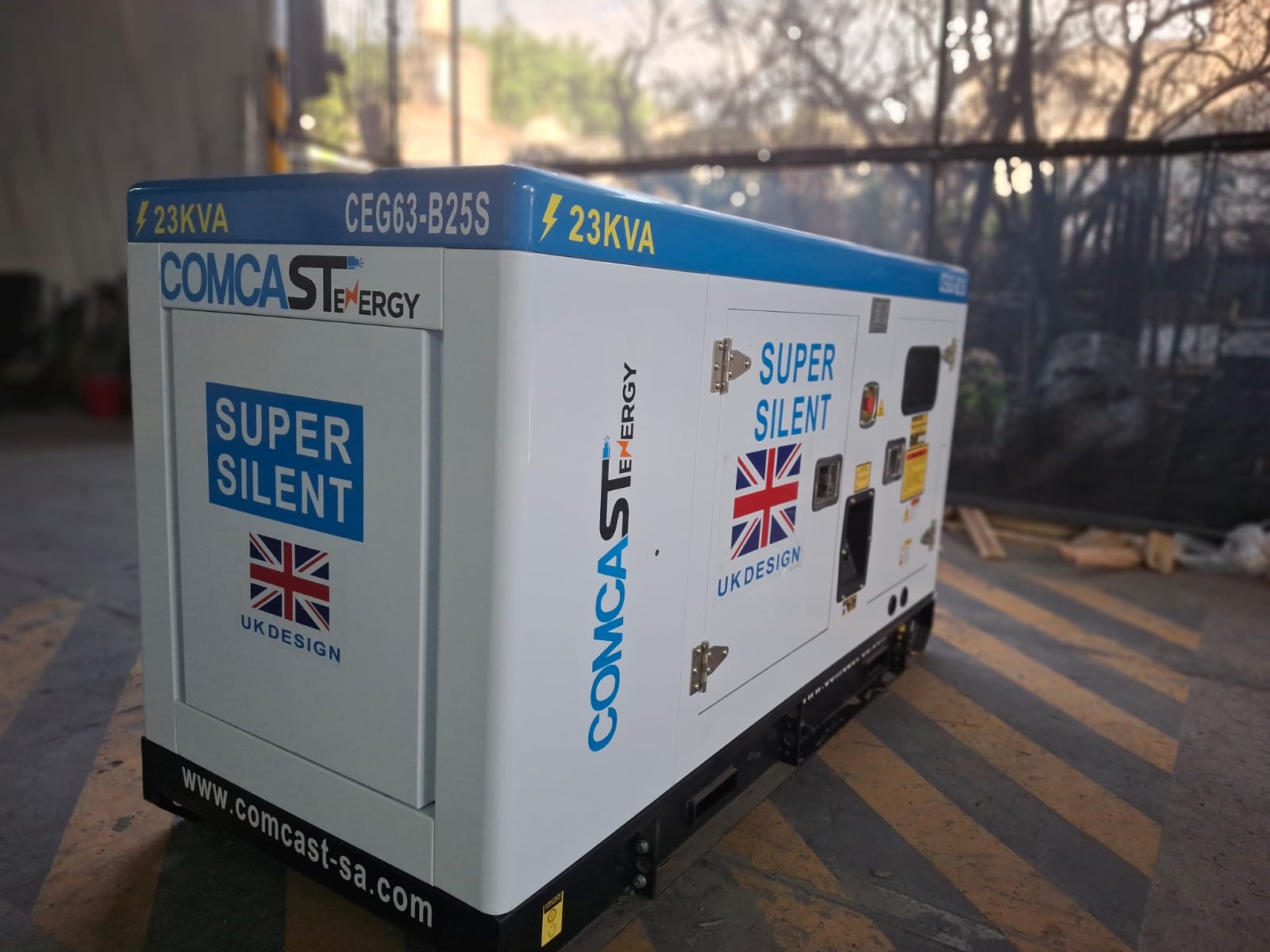

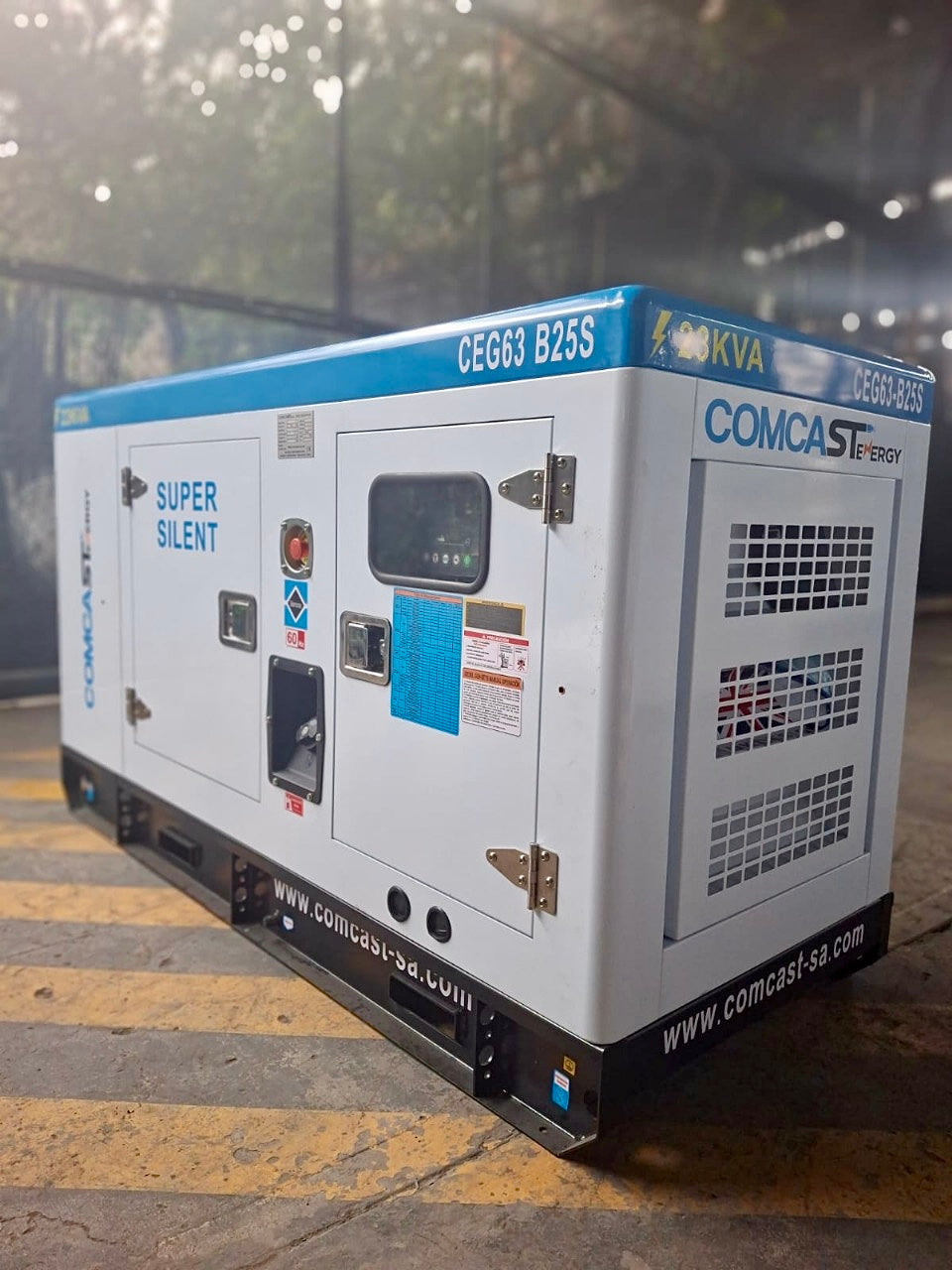

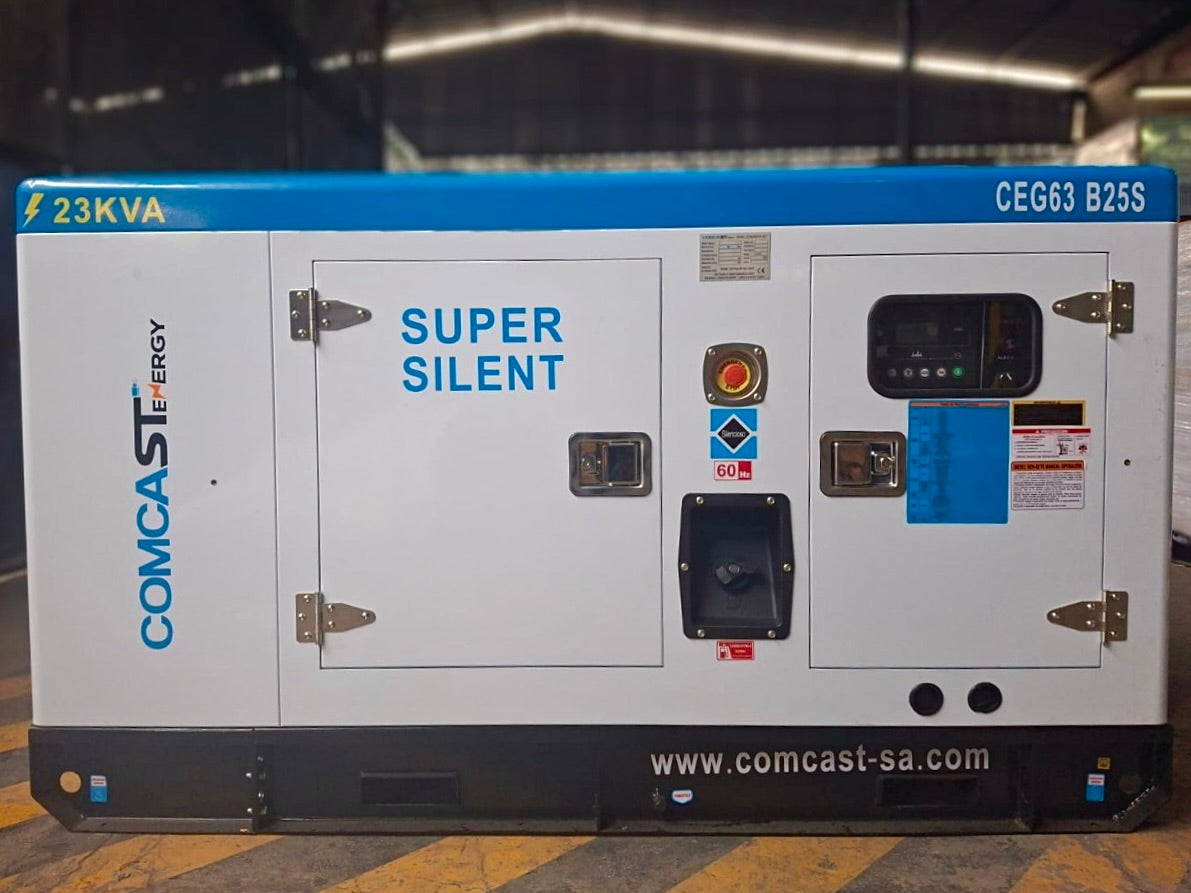

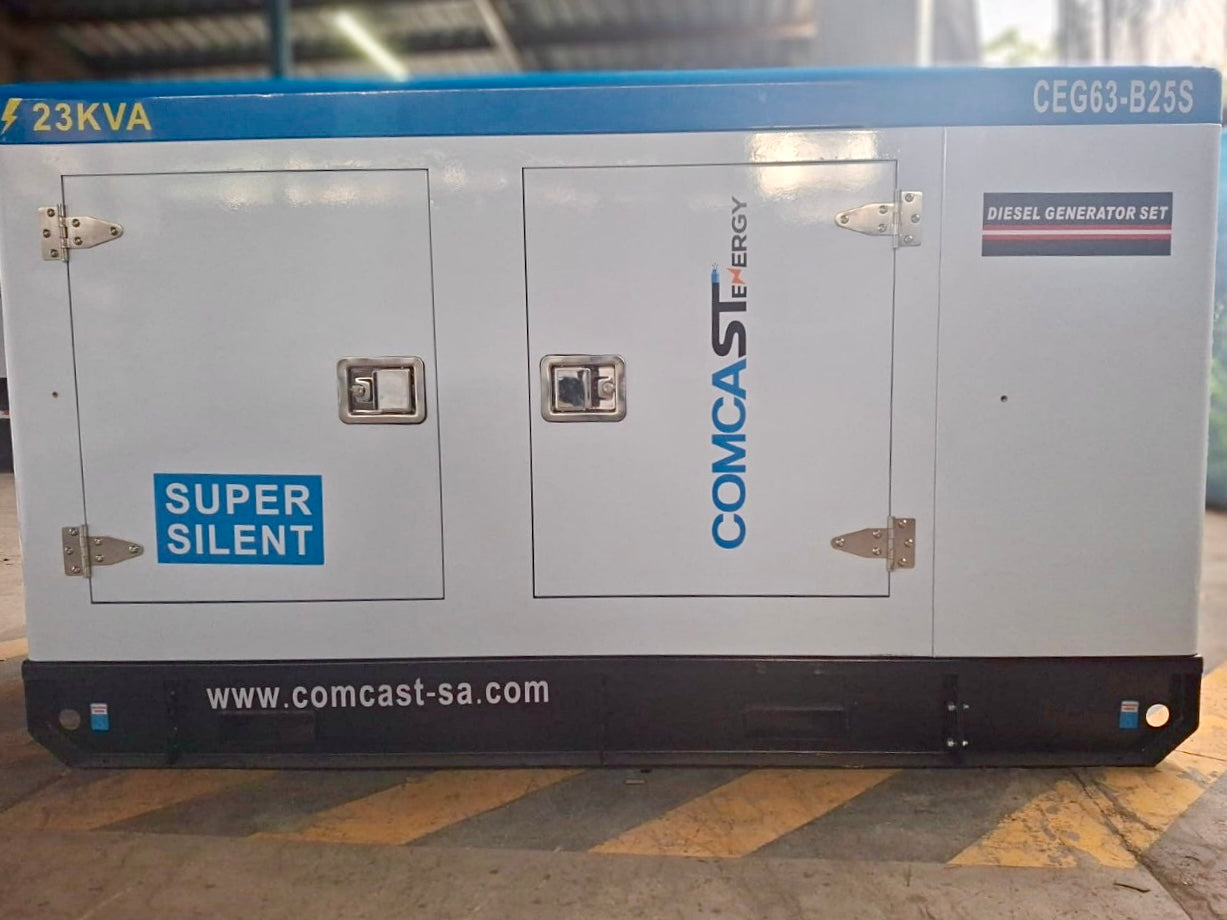

Generator 20 kW I 25 kVA – GENSET

Generator model:CEG63-C25S
Engine:Cummins 4B3.9-G11, 4 cylinders, 1800 RPM

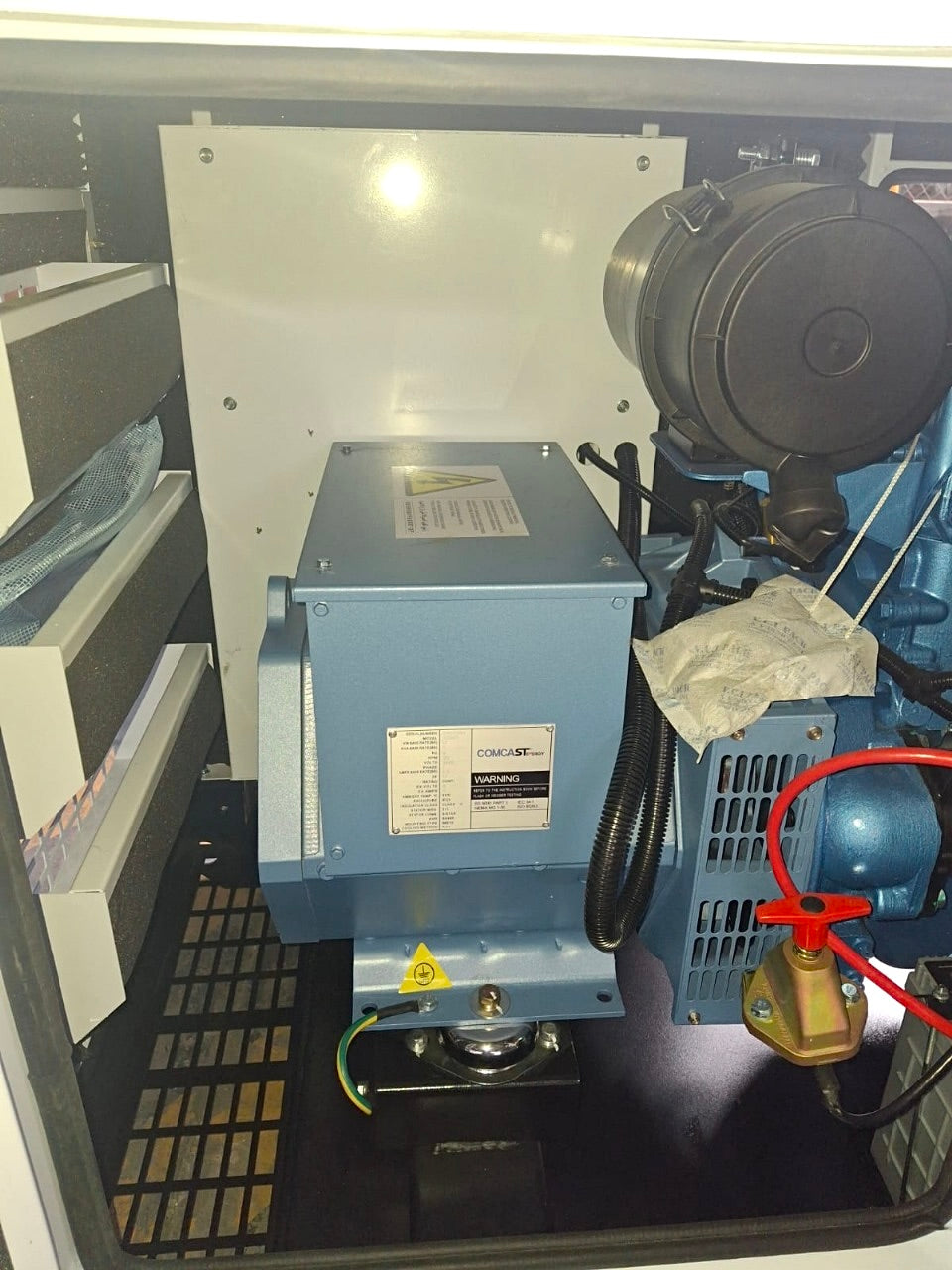

Alternator:Stamford CEG 184H brushless, 100% copper
Nominal power (Prime Power):18 kW (23 kVA)
Standby Power:20 kW (25 kVA)
Output voltage:single-phase 120/240 V and three-phase reconnectable to 208 V, 220 V, 440 V and 480 V.
Frequency:60 Hz
Power factor:0.8
Fuel consumption:256 g/kW·ha at 100% load
Injection system:mechanical direct injection pump
Cooling system:water-cooled
Starting system:12 V maintenance-free battery

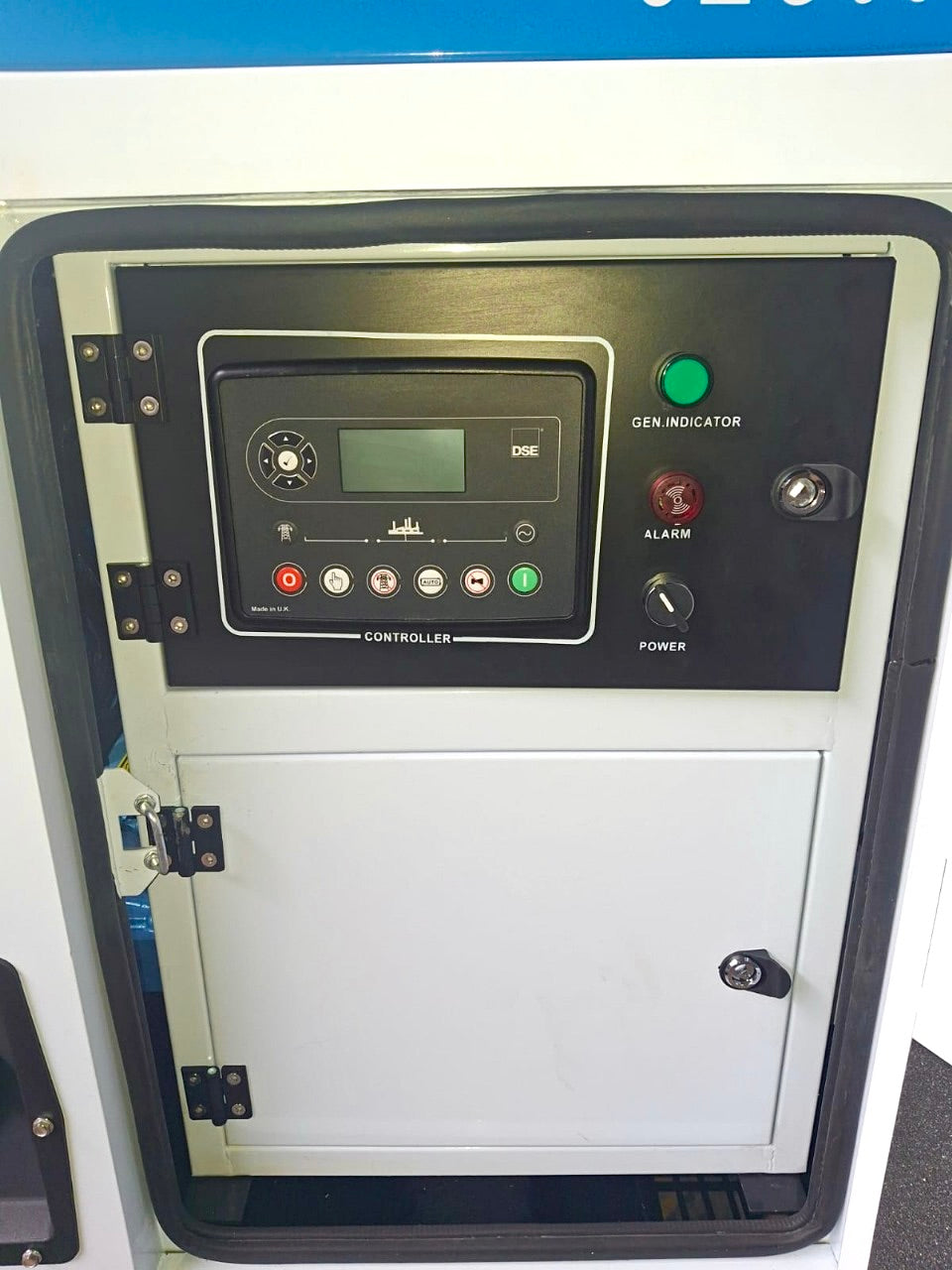

Protections and control:3P DeepSea DSE6120 circuit breaker with LCD display
Dimensions:2280 × 950 × 1300mm (length x width x height)
Weight:1010 kg
Warranty:1 year or 1,200 hours for engine and spare parts

TECHNICAL SHEET

Uninterrupted power– With 18 kW (23 kVA) of continuous power and automatic switching in less than 20 ms, your home or business keeps running without a single blink.
Real savings– The high-performance Cummins engine optimizes every drop of diesel, reducing fuel consumption without sacrificing power.
Total tranquility– Thanks to its automatic protections against overloads, short circuits, and low oil pressure, you can leave everything connected without worry.
Instant monitoring– The DeepSea DSE6120 LCD display clearly shows you voltage, current, and equipment status so you’re always up to date.
Construction that is proof of everything– 100% copper brushless alternator and water cooling ensure years of reliable operation, even under the most demanding conditions.

The GeneratorCEG63-C25SIt is the reliable and efficient solution for ensuring a continuous power supply in homes, businesses, and industries. With a nominal power of 18 kW (23 kVA) and up to 20 kW (25 kVA) in standby mode, this 0.8 power factor unit keeps your critical loads, such as telecommunications systems, pumps, and light machinery, stable even during the longest outages. Its automatic transfer in less than 20 ms ensures no perceptible interruptions, protecting your equipment and operations.

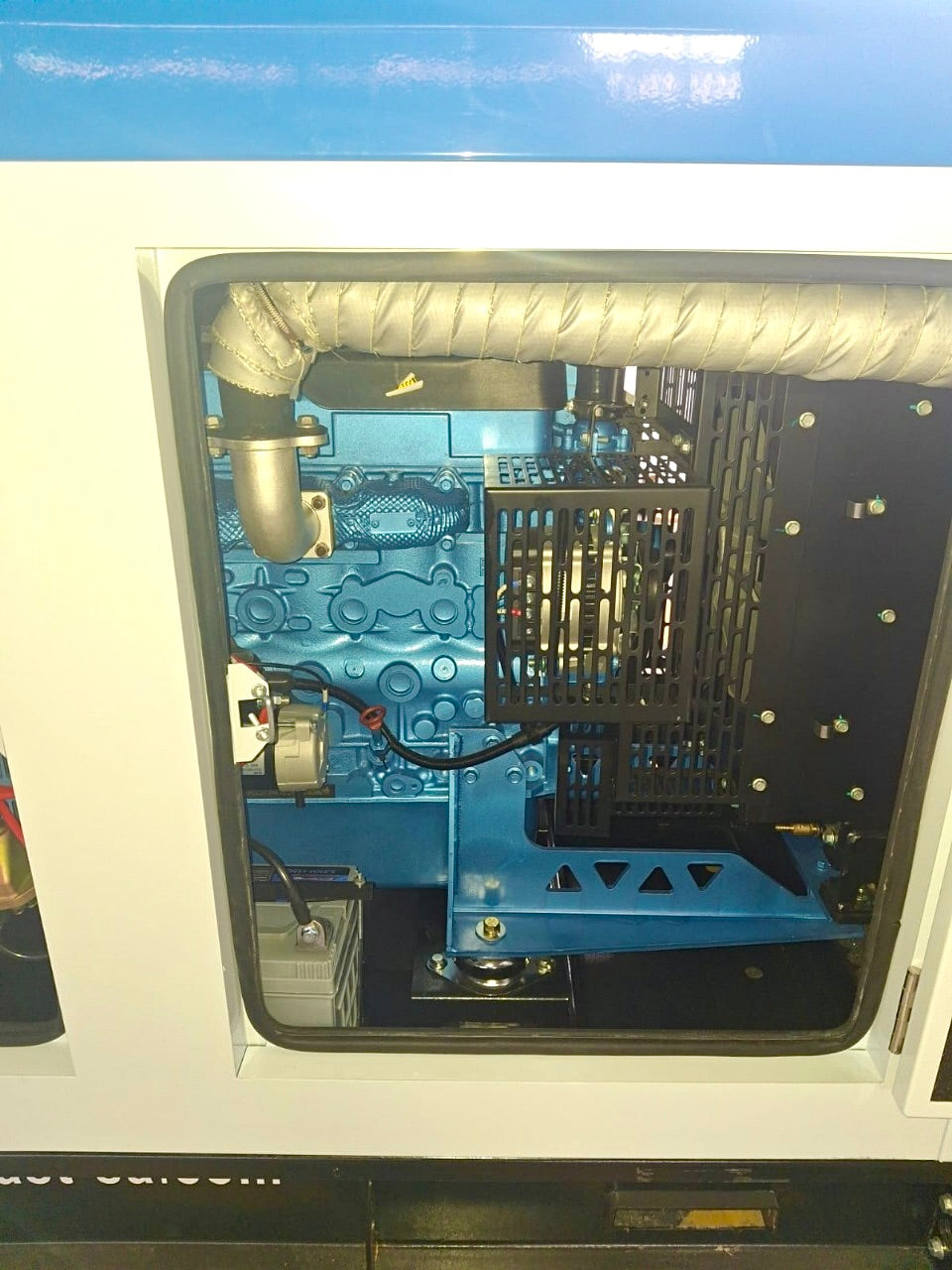

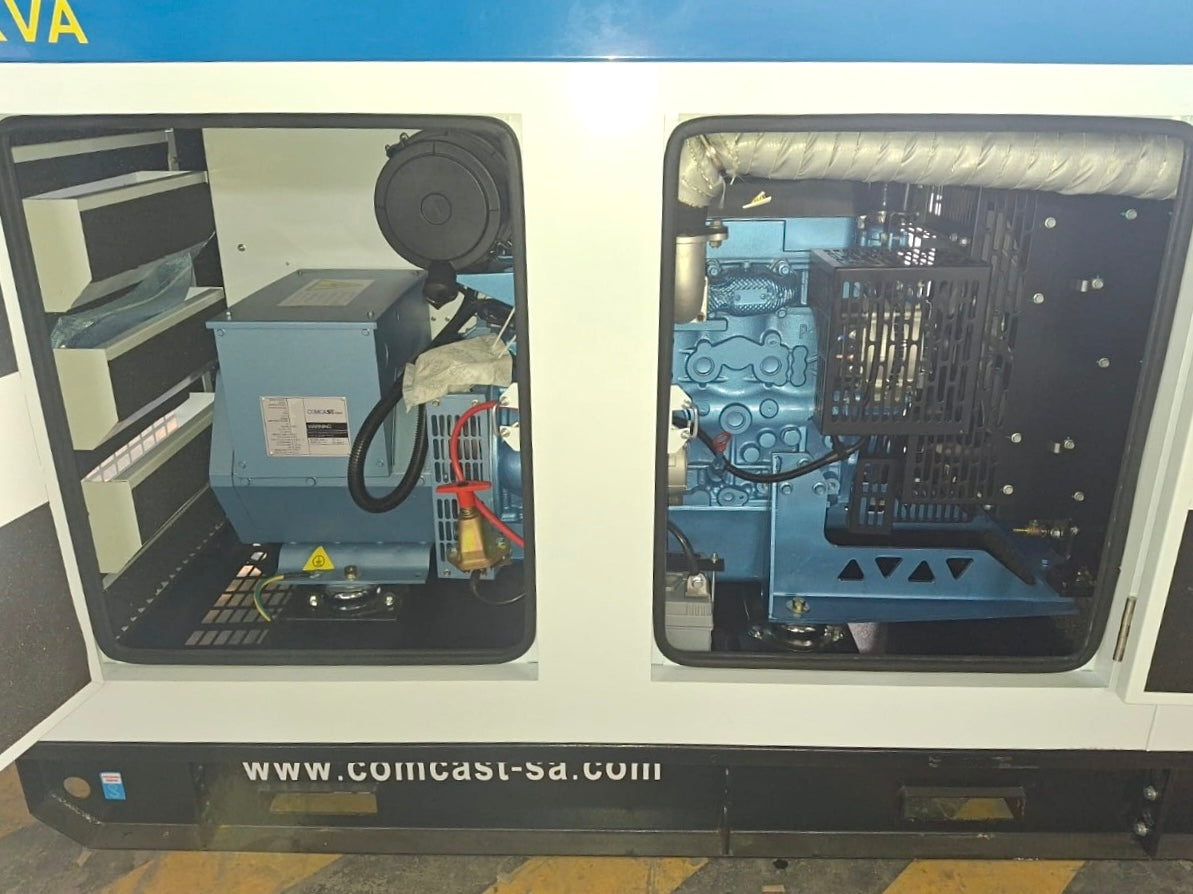

Powered by the robust 1,800 RPM Cummins 4B3.9-G11 4-cylinder engine and the 100% copper wound brushless Stamford CEG 184H alternator, this generator combines high performance with low fuel consumption (256 g/kW ha at full load). Its cold start from a 12 V battery and direct mechanical fuel injection system ensure fast and reliable start-up, while the DeepSea DSE6120 panel with intuitive LCD display makes it easy to set power priority and monitor voltage, current and operating statuses in real time.

Made with high quality materials and a water cooling system, theCEG63-C25Soffers a strong and durable structure, designed to withstand demanding conditions without losing efficiency. With comprehensive protections against overload, short circuit, low oil pressure, and high temperature, it provides the necessary safety for your facilities. The “Open” dimensions of 2280 × 950 × 1300 mm and its weight of 1010 kg require a firm base, but ensure quiet operation and constant maintenance. For those looking for a power source that combines power, reliability, and ease of use, theCEG63-C25Sis the ideal option.
