GN-1846 - 12 Channel HD Encoder

DESCRIPTION
GN-1846 12 Channel H.264 HD Encoder - Powerful Multi-Channel Encoding Solution

The GN-1846 is a high-density H.264 HD encoder designed to provide superior performance for IPTV streaming and video broadcast applications. This modular 1RU unit supports up to 24 channels of MPEG-4 AVC HD encoding in a single rack, making it the ideal solution for large-scale encoding requirements. It is built to deliver seamless, low-latency video and audio encoding , ensuring high-quality streaming.

Key Features:

• 12-Channel HD Encoding : Supports up to 4 channels of high-definition video per encoding module, enabling flexible, high-performance multi-channel video encoding in a compact 1RU chassis .
• HDMI Input : Supports HDMI input options , facilitating integration into existing systems and workflows.
• Flexible Output Formats : Provides MPEG TS output over UDP/RTP/RTMP , enabling unicast and multicast streaming for various applications.
• High Quality Video Encoding : Supports video resolutions of 1080P at 30/25fps and 720P at 30/25fps , with bit rates up to 10Mbps per channel, for clear, high-quality video .
• Audio Coding : Supports MPEG-1 Layer II and AAC audio encoding with adjustable bit rates (64/96/128/192/256/384 kbps) to ensure optimal audio quality.
• Web Management : Includes web browser management for local and remote configuration, management and monitoring, providing easy operation for engineers and operators.

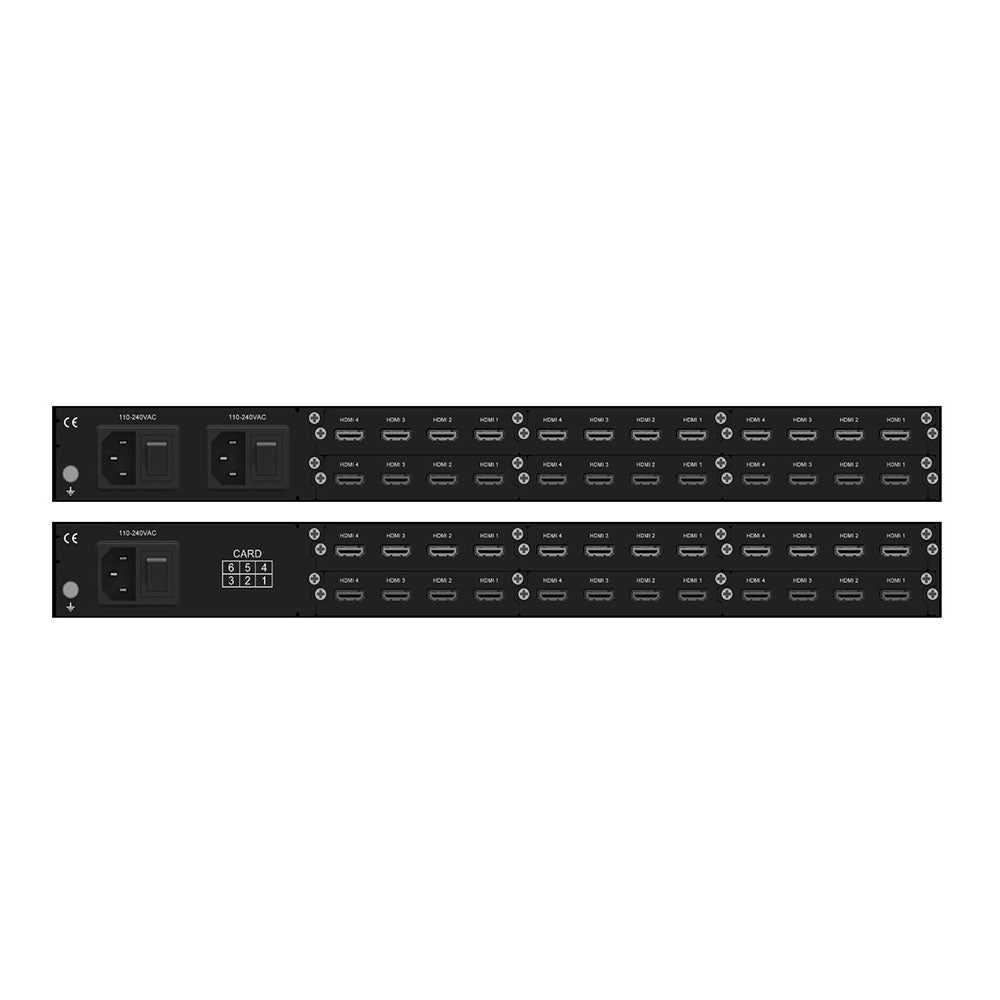

• Compact and Efficient : The 1RU rack-mountable design optimizes space in server rooms, with a modular architecture that allows up to 3 interchangeable encoding modules .

Technical Specifications:

• Video Encoding :
  • Format : MPEG-4 AVC (HP/MP/BASE)
  • Resolution : 1920x1080P at 30/25fps and 1280x720p at 30/25fps
  • Bit Rate Mode : VBR (Variable Bit Rate) and CBR (Constant Bit Rate)
  • Video Rate : 1 to 10Mbps per program
• Audio Encoding :
  • Format : MPEG-1 Layer II (AAC optional)
  • Sampling Rate : 48kHz, stereo
  • Audio Bit Rate : 64/96/128/192/256/384 kbps
• Power Supply : 100 - 240 VAC , 75W max
• Operating Temperature : 5°C to 45°C (41°F to 113°F)
• Dimensions : 483mm x 44.5mm x 450mm (1RU form factor)

Applications:

• Ideal for video encoding for broadcast , IPTV , OTT streaming and surveillance applications where high quality, low latency streaming is required.

The GN-1846 encoder offers flexible, high-density encoding and is the perfect solution for organizations requiring a high-performance, cost-effective multi-channel video encoding system.
