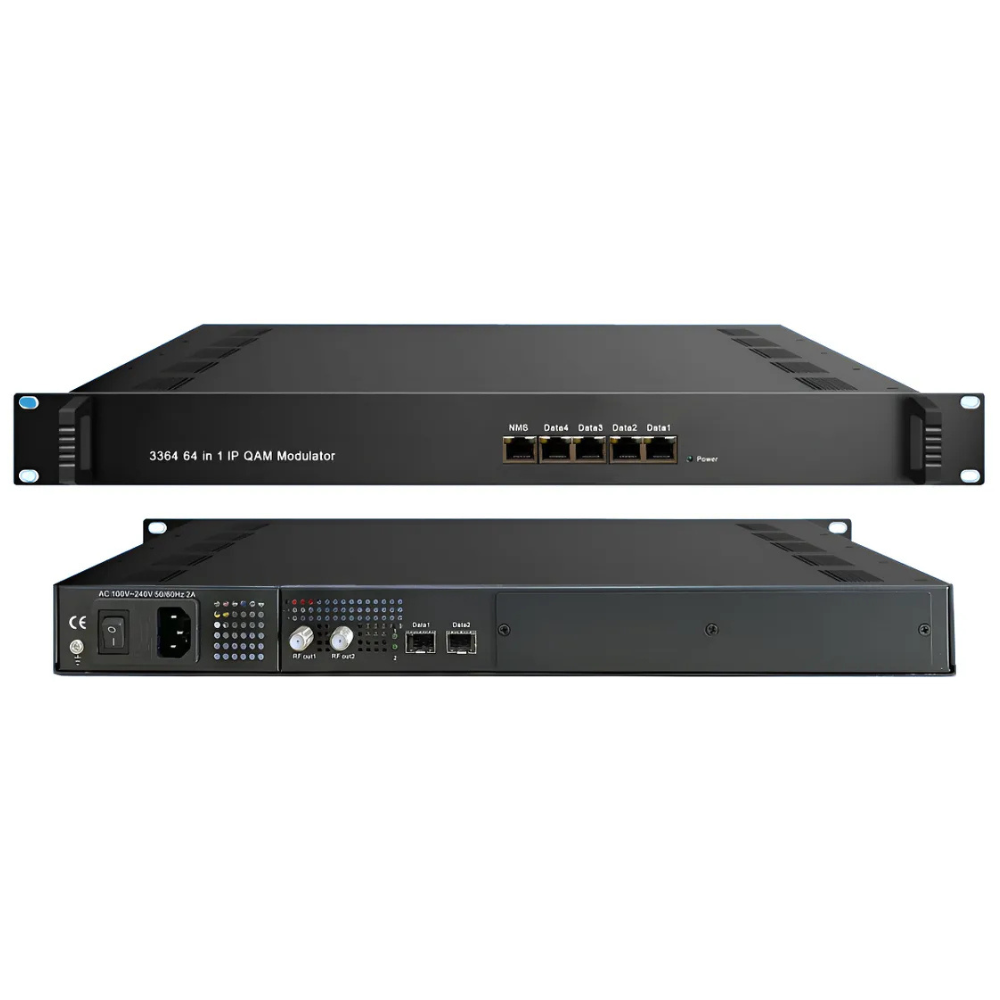

GOS3364 IP to 64 QAM modulator

IP Entries: Up to 512 via 6 GE ports (4x RJ45, 2x SFP)
Protocols: TS over UDP/RTP (unicast and multicast), IGMP V2/V3
Transmission speed: Max. 840Mbps per GE port
Exit channels: 64 QAM (non-adjacent), 2 F-type RF outputs
Modulation: EN300 429 / ITU-T J.83 A/B/C; 16/32/64/128/256 QAM
Bandwidth: 6M (J.83B/C) and 8M (J.83A)
Symbol rate: 5.07.0Msps, adjusted by 1ksps
Scrambling: Up to 6 simultaneous CA systems, compatible with ETSI 101 197 and 103 197
Grid: Output of 64 IP streams multiplexed/scrambled by UDP/RTP/RTSP
Management: Web-based interface
RF Range: 50960 MHz (adjustment by 1 kHz)
RF output level: -20 to +10 dBm (87117 dBµV)
MER: ≥ 40 dB
Power supply: 100220V AC, 50/60Hz
Operating temperature: 0~45°C
Dimensions:57cm (length) × 56cm (width) × 13cm (height)
Weight:9kg

TECHNICAL SHEET

Efficient large-scale transmission: Supports up to 512 IP inputs with non-adjacent QAM output on 64 carriers.
Advanced multiplexing and scrambling: PID remapping, PCR tuning, automatic PSI/SI table generation, and ETSI-compliant scrambling.
Wide modulation compatibility: Compatible with EN300 429 and J.83A/B/C, with constellations up to 256QAM.
Simple and remote management: Access and configuration via user-friendly web interface.
Dual RF output: : 2 F-type ports for greater channel coverage and deployment flexibility.

HeGOS3364It is the ideal tool for networks that need to efficiently distribute multiple digital channels in QAM format. Thanks to its massive input capacity, multiple output options, and advanced signal processing features, it enables robust and reliable transmission for digital TV, IPTV, and data services. Its multiplexing and scrambling capabilities make it suitable for meeting today's security and content control requirements.

Additionally, its web-based management interface facilitates remote configuration and continuous monitoring, while its compact design makes it perfect for headend deployments or space-constrained environments. Whether expanding a cable operator's network or supporting a high-performance IPTV environment, the GOS3364 offers a complete, scalable solution.
