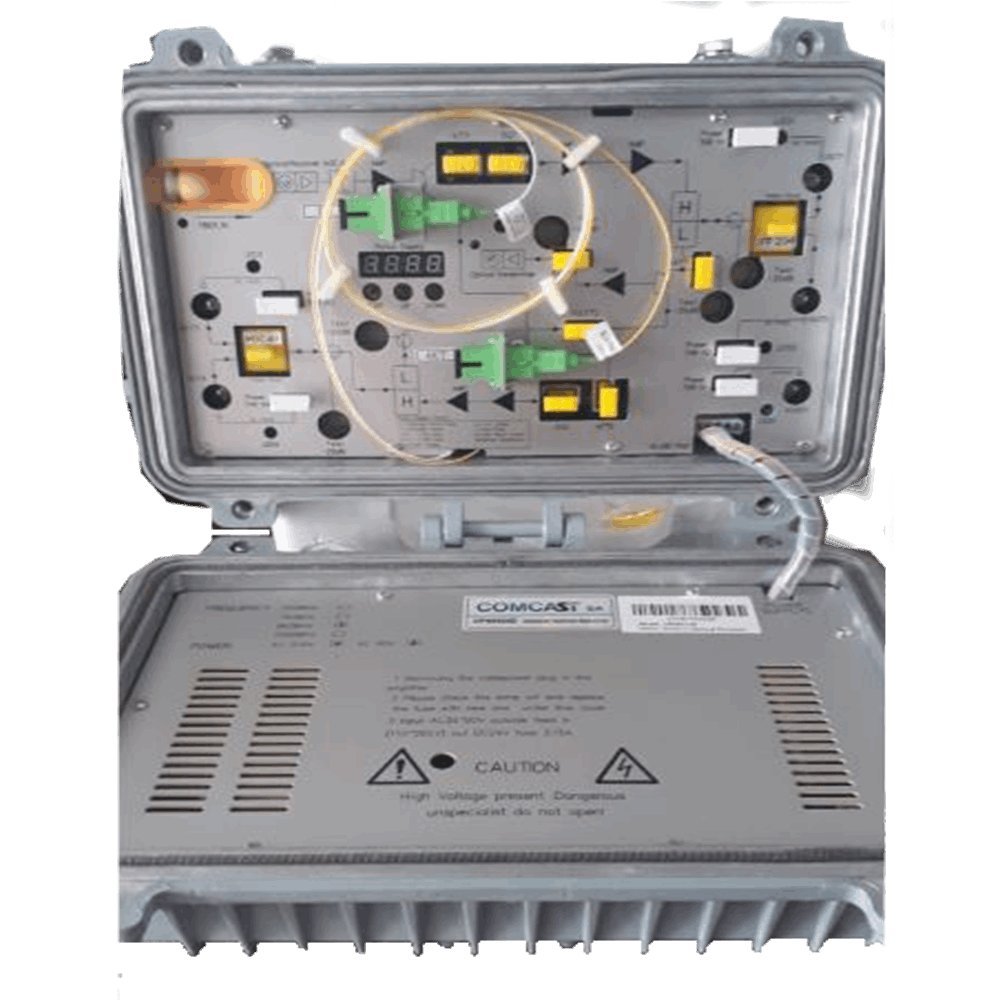

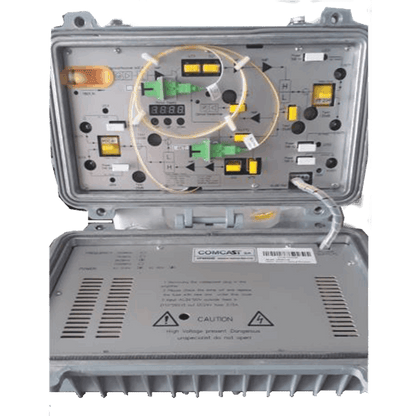

OPN8624D Optical Node w/Return

RF Outputs:4
Output level:≥114 dBμV
Frequency:54–862 MHz
Optical reception:-8 to +2 dBm
AGC/MGC Control:with key selection
Optical port:SC/APC
LED Display:displays power, temperature, voltage and status
Maximum consumption:32W
Protection:IP65 sealed aluminum housing
Operating temperature:-40°C to +60°C
Dimensions:36 × 24 × 16 cm
Weight:3.85kg

TECHNICAL SHEET

Stable and high-performance signal:Enjoy powerful, consistent output thanks to the GaAs module and AGC/MGC function that automatically adjusts the optical level.
Quick and easy installation:LED display with key parameters (power, voltage, temperature) for simple and efficient commissioning.

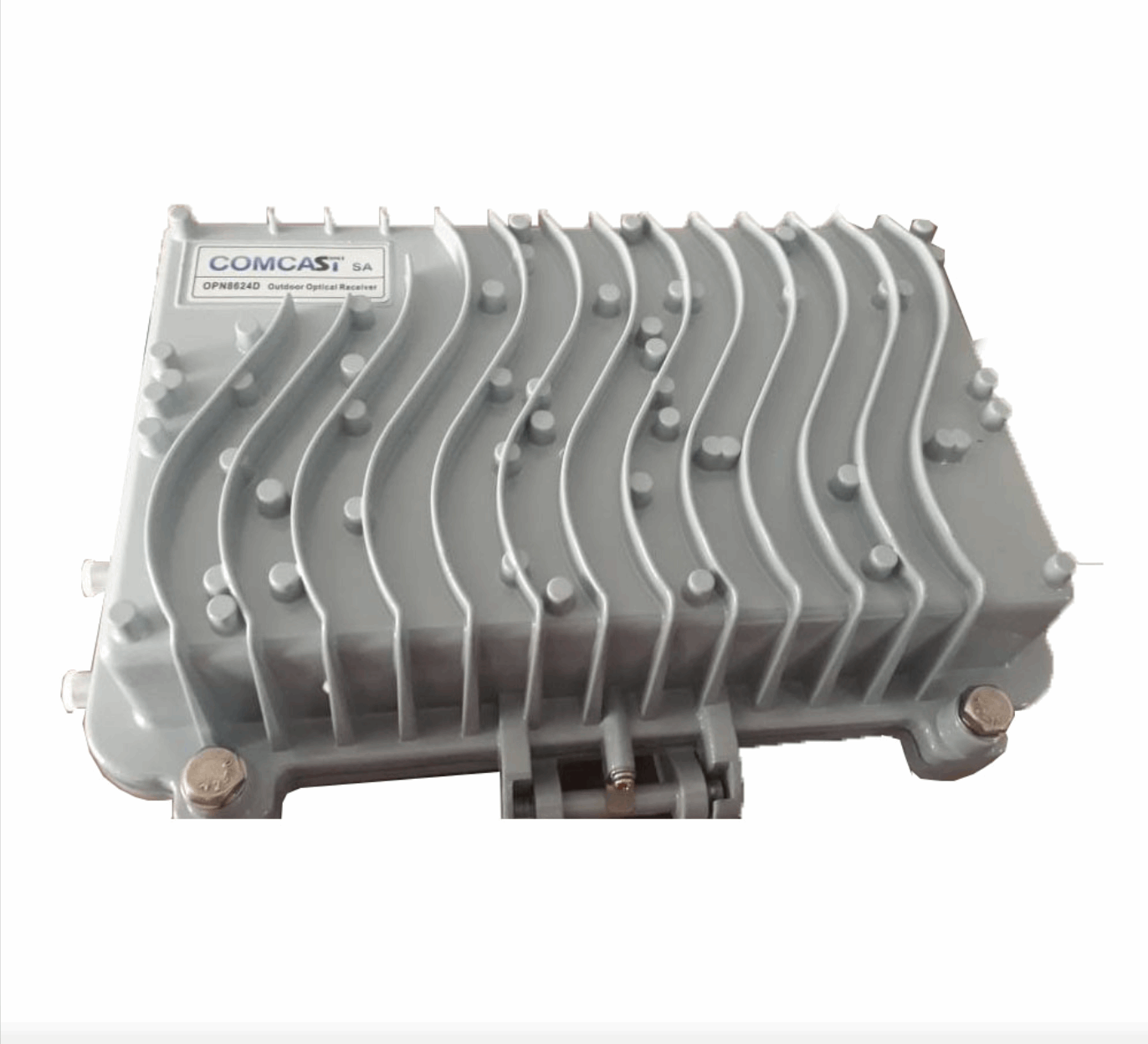

Robust protection:IP65 sealed aluminum housing ideal for outdoor installations and demanding conditions.
Total versatility:Compatible with digital and analog signals for HFC, CATV or hybrid systems.
Guaranteed durability:Designed to operate under extreme temperatures (-40°C to +60°C), ensuring long life and minimal technical intervention.

HeOptical Node OPN8624DIt is designed to offer high-quality signal reception and distribution in CATV and HFC networks. Featuring four RF outputs, high-performance GaAs amplification technology, and key-selectable AGC/MGC control, this device ensures a stable signal at all times, even when optical power varies between -8 and +2 dBm. Ideal for those seeking a reliable and professional solution for simultaneous digital and analog transmissions.

Thanks to its smart LED display, theOPN8624DIt displays key parameters such as input power, internal temperature, voltage, and operating status, facilitating installation, maintenance, and monitoring of the equipment. Its sealed, IP65-certified aluminum housing makes it perfect for outdoor use, withstanding extreme environmental conditions between -40°C and +60°C.

Whether expanding an existing network or building a new signal distribution infrastructure, theOPN8624DIt offers energy efficiency (maximum consumption of only 32W), high output capacity (≥114 dBµV) and compatibility with frequencies from 54 to 862 MHz. It is the ideal tool for installers, network operators or technicians who demand performance, durability and ease of use in a single device.
