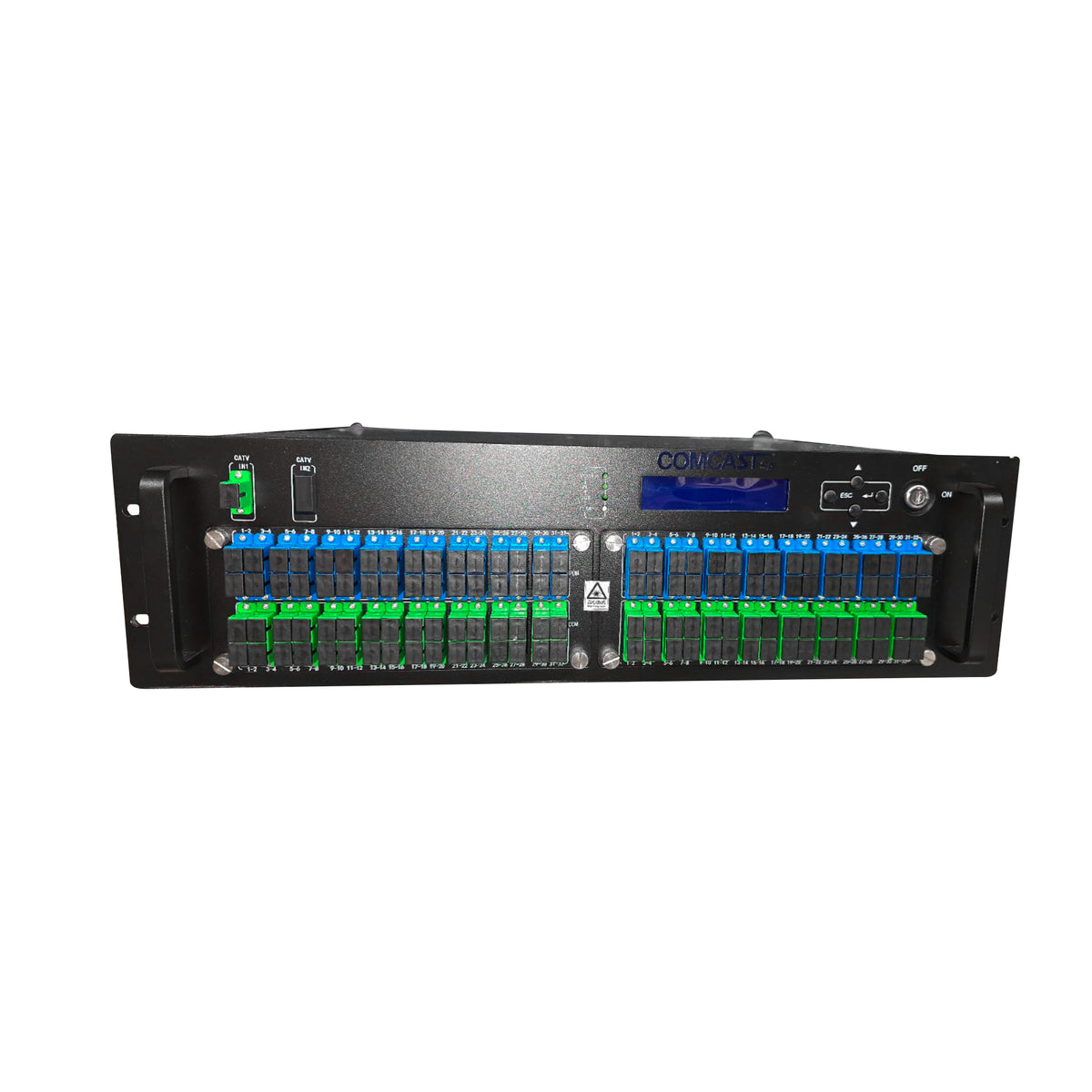

XFO-EDFASW19dbm - 32 Outputs

Amplifier type:EDFA (Erbium-Doped Fiber Amplifier)
Number of outputs:64 WDM SC/APC outputs
Input wavelength:1545 – 1565 nm
Input power:-5 ~ +10 dBm
Total output power:23 dBm
Noise level:≤ 5 dB
Connectors:SC/APC
Management:Web, SNMP, RS232
Protection:Overload, overtemperature, laser failure
Power source:100–240V AC, 50/60Hz
Dimensions:Length: 55 cm, Width: 55 cm, Height: 11 cm
Weight:6kg

TECHNICAL SHEET

High distribution capacity:64 WDM outputs allow you to reach more users from a single device.
Stable and reliable power:Total output of 23dBm for strong long distance transmission.
Easy monitoring:Remote control and configuration via Web, SNMP and RS232.
Professional compact design:1U format ideal for rack mounting in technical rooms.
Smart Protection:Internal alarm system to detect faults and maintain safe operation.

HeXFO-EDFA FW23dbm-64WDMIt's the perfect solution for network operators looking to efficiently scale their FTTH infrastructure. With 64 WDM outputs, this device allows coverage to be expanded to hundreds of users without compromising signal quality.

Its reliable design, remote monitoring, and compact form factor make it ideal for technical environments where space, performance, and management are key. Whether in dense urban networks or large-scale rural deployments, this EDFA delivers the performance and reliability that service providers demand.
