XFO-EDFASW19dbm - 32 Outputs

Amplifier type:EDFA (Erbium-Doped Fiber Amplifier)
Number of outputs:16 WDM SC/APC outputs
Input wavelength:1545 – 1565 nm
Input power:-5 ~ +10 dBm
Total output power:23 dBm
Noise level:≤ 5 dB
Connectors:SC/APC
Management:Web, SNMP, RS232
Protection:Against overload, overtemperature and laser failure
Power source:100–240V AC, 50/60Hz
Dimensions:Length: 55 cm, Width: 55 cm, Height: 20 cm
Weight:4kg

TECHNICAL SHEET

Efficient coverage:16 WDM outputs ready to distribute optical signal to multiple clients.
Strong and stable power:23 dBm total output for long distance transmission.
Easy management:Control via Web, SNMP or RS232 port for remote monitoring and configuration.
Professional 1U design:Ideal for telecommunications racks with limited space.
Operational security:Internal alarm system in case of overheating or signal failures.

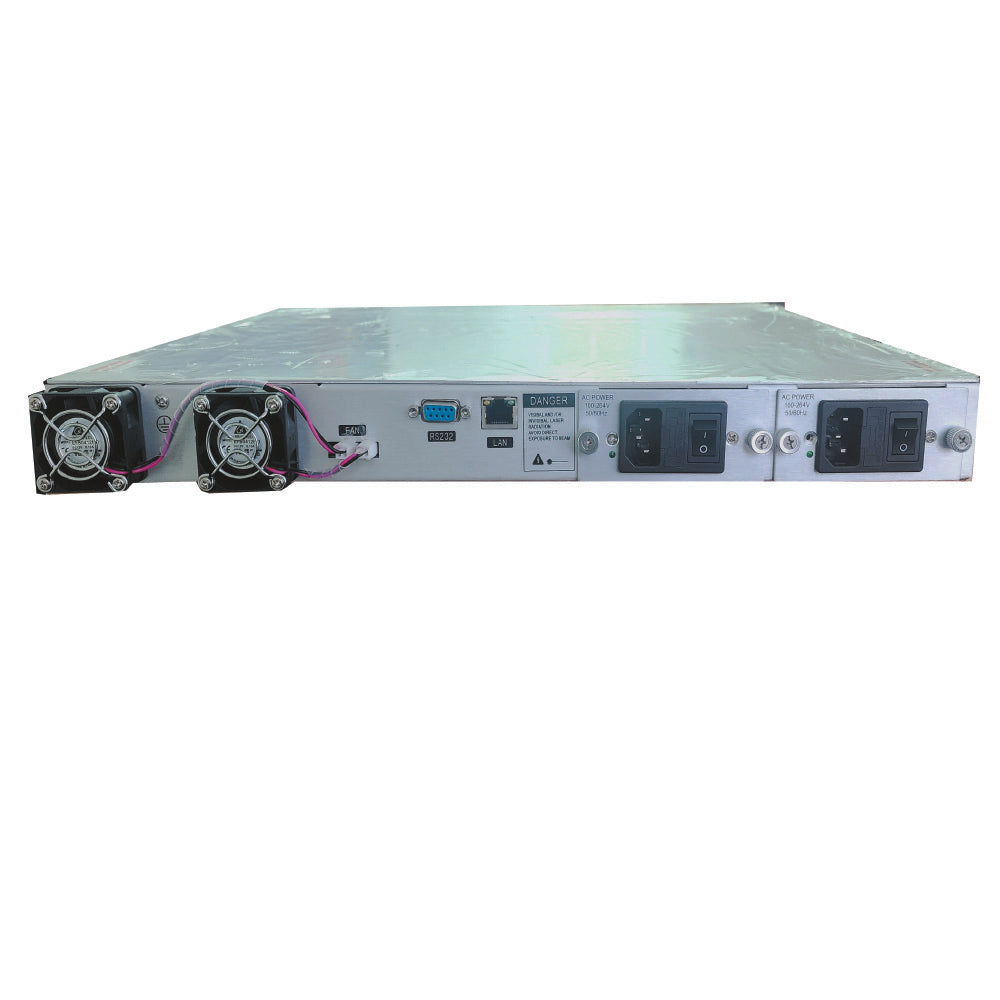

HeXFO-EDFA FW23dbm-16WDMIt's a key tool for any operator looking to scale their FTTH network without sacrificing signal quality or reliability. With 16 optical outputs and a total power of 23 dBm, it allows the signal to be extended to more users over greater distances.

Its efficient design, compact size, and remote management capabilities make it an ideal choice for data centers, ISPs, or telecommunications networks that require powerful, easy-to-manage solutions.
