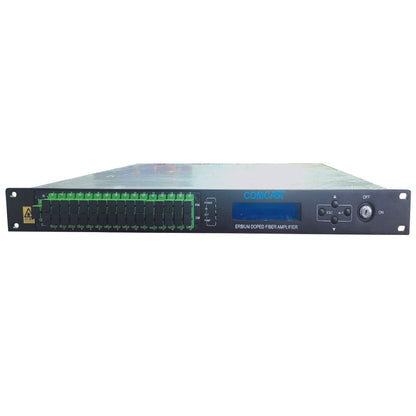

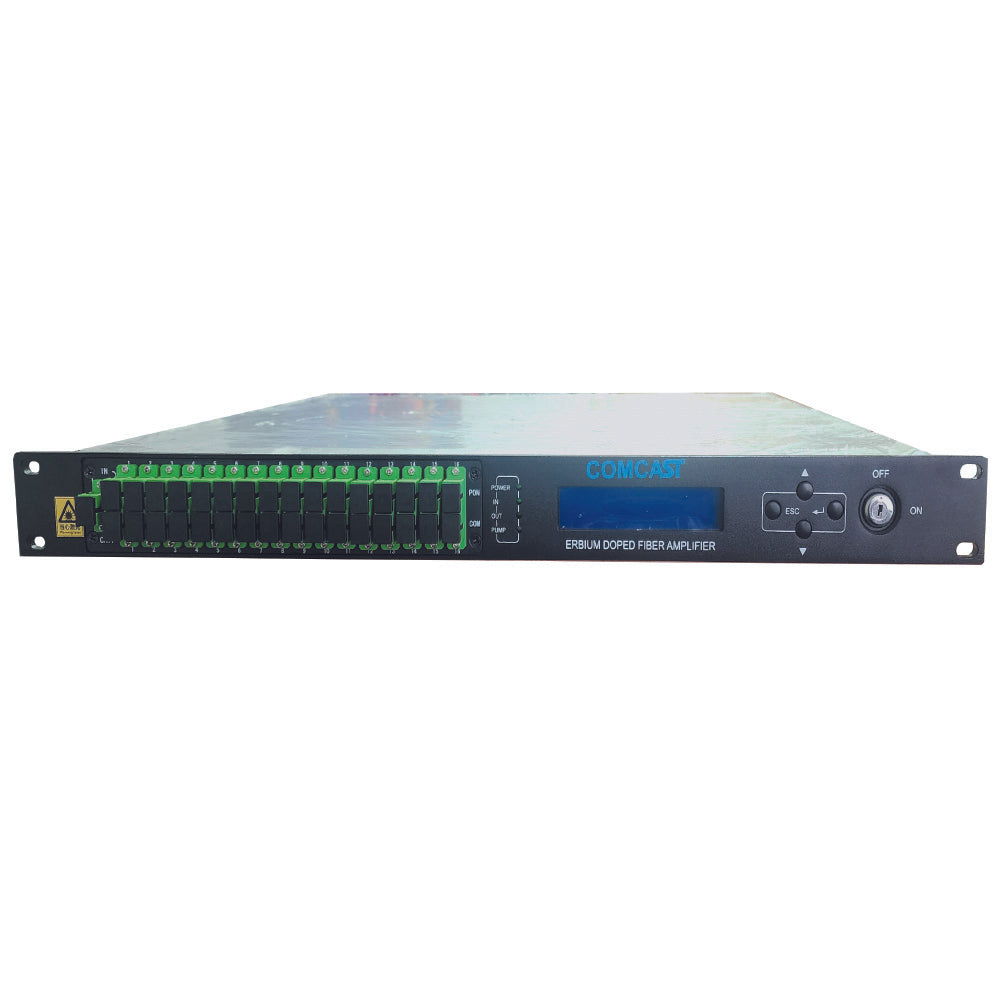

XFO-EDFASW19dbm - 16 WDM Outputs

Output power:19 dBm uniform across all outputs
Number of optical outputs:16 SC/APC ports
Wavelength:1545–1563 nm
Amplification type:Erbium-Doped Fiber Amplifier (EDFA)
Compatibility:WDM, FTTH, CATV
Monitoring and management:SNMP, RS232, Web interface
Protection:Overtemperature, overcurrent, and input loss circuit
Input voltage:110–240V AC
Energy consumption:≤ 40W
Mounting:In standard 1U (19”) rack
Dimensions:56 cm (Length) × 56 cm (Width) × 14 cm (Height)
Weight:6.55 kg

TECHNICAL SHEET

Efficient signal coverage:It amplifies optical signals up to 16 simultaneous outputs with an output power of 19 dBm, ensuring uniform distribution without loss of quality.
Multiple connector support:Supports SC/APC or LC/APC connectors, facilitating integration with existing equipment and networks.
Remote monitoring and management:It allows real-time monitoring through SNMP, web interface or RS232 ports, providing full control over its operation.
Intelligent thermal protection:It integrates an automatic temperature control system that extends the equipment's useful life and prevents failures.
Low energy consumption:Designed to operate efficiently without generating overloads or consumption peaks.

HeXFO-EDFASW 19dBm – 16 WDM OutputsIt is an optical amplifier specifically designed for fiber optic networks requiring high coverage and efficiency, such as FTTH, CATV, or long-distance links. Thanks to its 16 optical outputs and a uniform power of 19 dBm, this device allows the signal to be distributed to multiple points without compromising quality or stability, making it an ideal solution for service providers who need to maintain performance in increasingly demanding networks.

One of its main advantages is its advanced management capabilities. It features support for SNMP, RS232, and an intuitive web interface, facilitating real-time monitoring and remote system management. This allows for anticipating failures, adjusting parameters based on traffic, and ensuring service continuity without the need for physical intervention. Furthermore, its intelligent temperature control system and low energy consumption increase the equipment's durability, protecting your long-term investment.

Overall, this EDFA stands out for its efficiency, ease of integration, and adaptability to different environments. Whether expanding an urban fiber network, extending signal to remote areas, or reinforcing a cable television system, the XFO-EDFASW guarantees stable, powerful, and professional operation, ready to meet current and future connectivity demands.
