XFO-EDFASW19dbm - 32 Outputs

Amplifier Type:EDFA (Erbium-Doped Fiber Amplifier)
Number of Ports:64 WDM SC/APC outputs
Input Wavelength Range:1545 – 1565 nm
Input Power:-5 ~ +10 dBm
Total Output Power:19 dBm
Connectors:SC/APC
Noise:≤ 5 dB
Management:Web, SNMP, RS232
Protections:Overload, overtemperature, laser failure
Power Source:100–240V AC, 50/60Hz
Dimensions:Length: 55 cm, Width: 55 cm, Height: 11 cm
Weight:5kg

TECHNICAL SHEET

Massive network expansion:Up to 64 WDM SC/APC ports for greater range without losing signal quality.
High power and coverage:Total output of 19dBm ideal for long distances and dense networks.
Professional installation:Rack-mountable 1U form factor saves space and simplifies deployment.
Smart management:Compatible with Web, SNMP and RS232 for centralized control and monitoring.

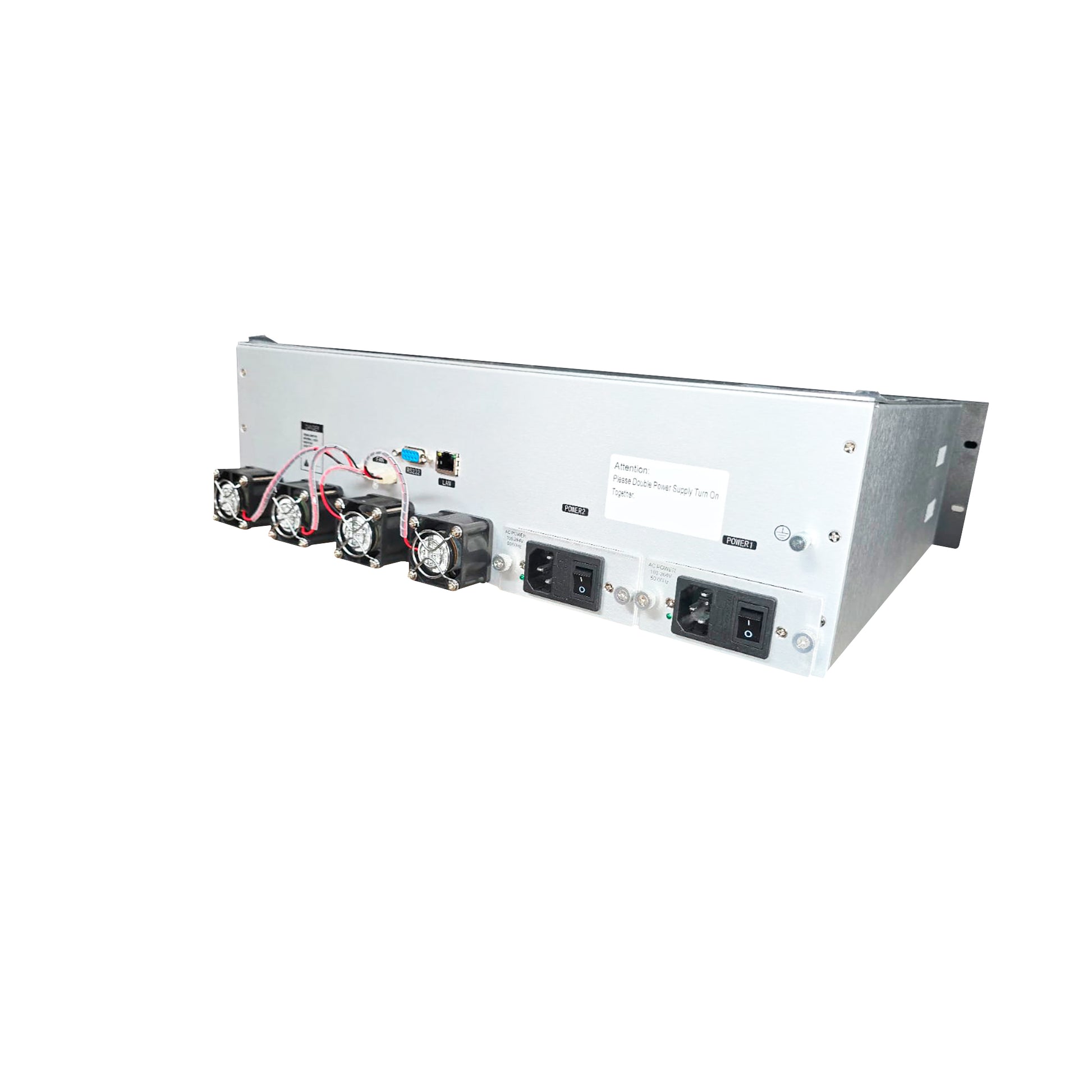

Reliable protection:System with alarms, automatic ventilation and overload protection.

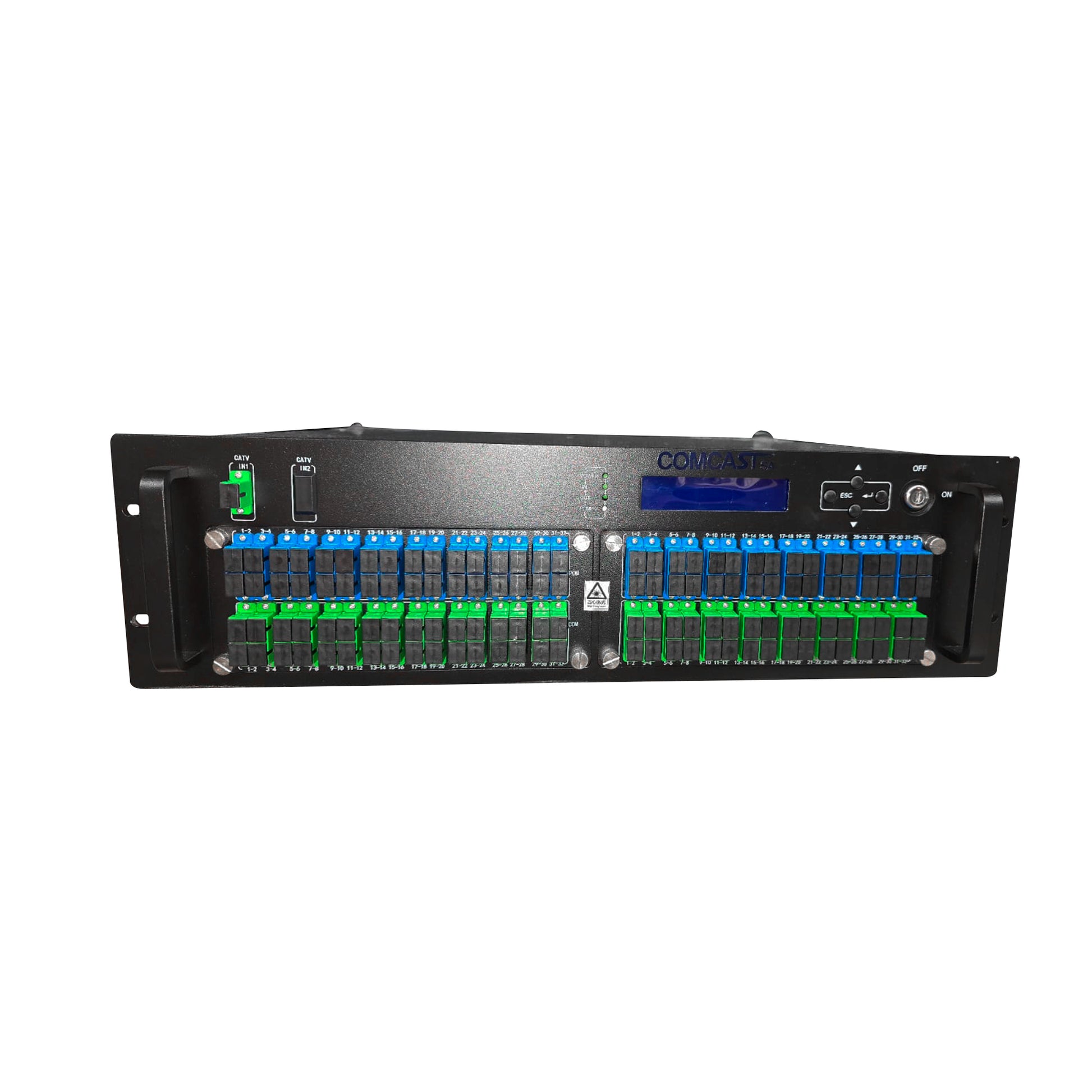

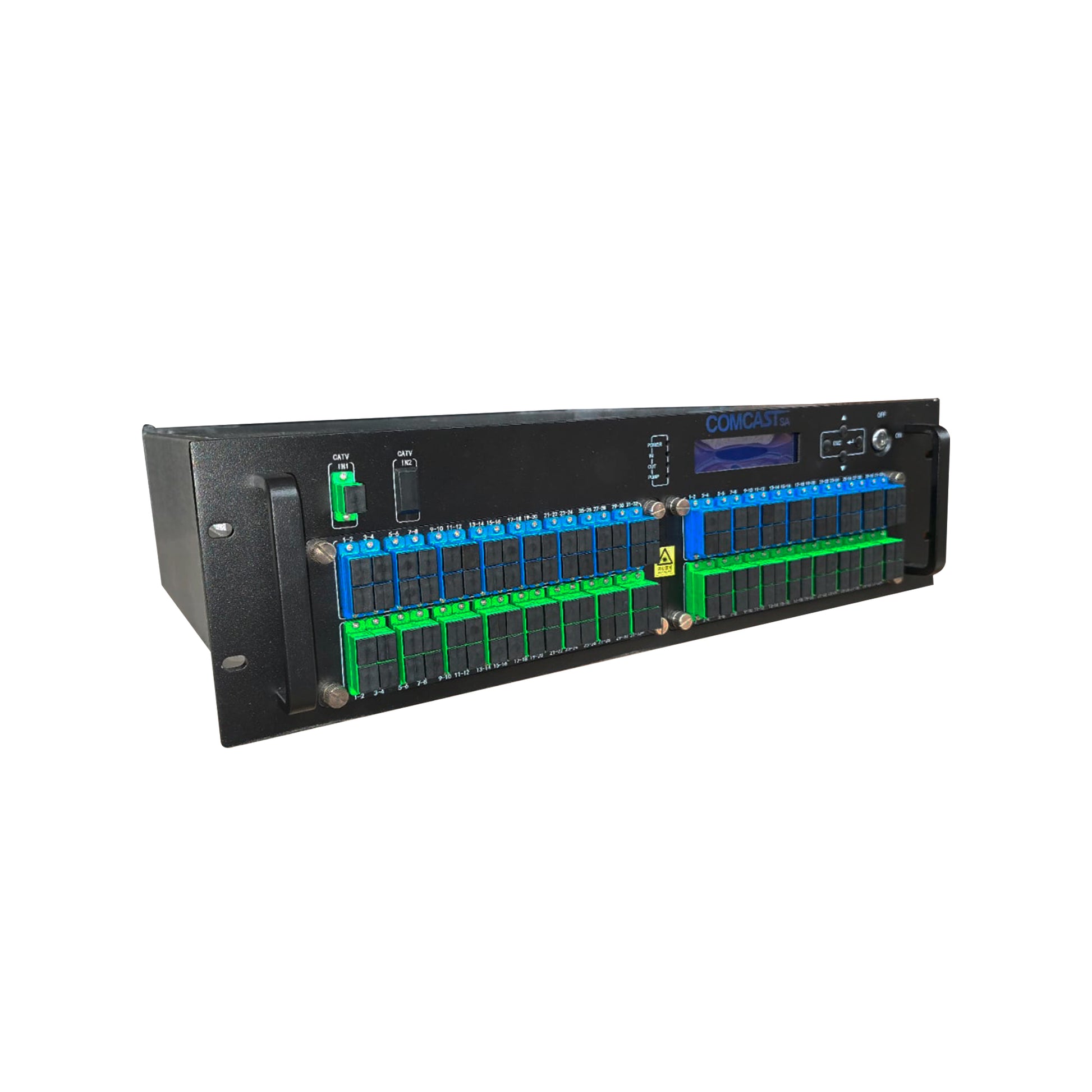

HeXFO-EDFA FW19dbm-64WDMIt is a robust and efficient solution for operators who need to amplify their optical signal without compromising performance. Thanks to its 64-output WDM design, this device enables broader distribution of GPON services without the need for multiple amplifiers, resulting in savings in space, power consumption, and operating costs.

Its 19 dBm power makes it an excellent choice for covering long distances in FTTH applications, access networks, and distribution networks. Equipped with remote management features, automatic protection, and a professional design, this EDFA is the perfect partner for maximizing your network's efficiency and coverage.
