XFO TX1550nm Mini10dbm

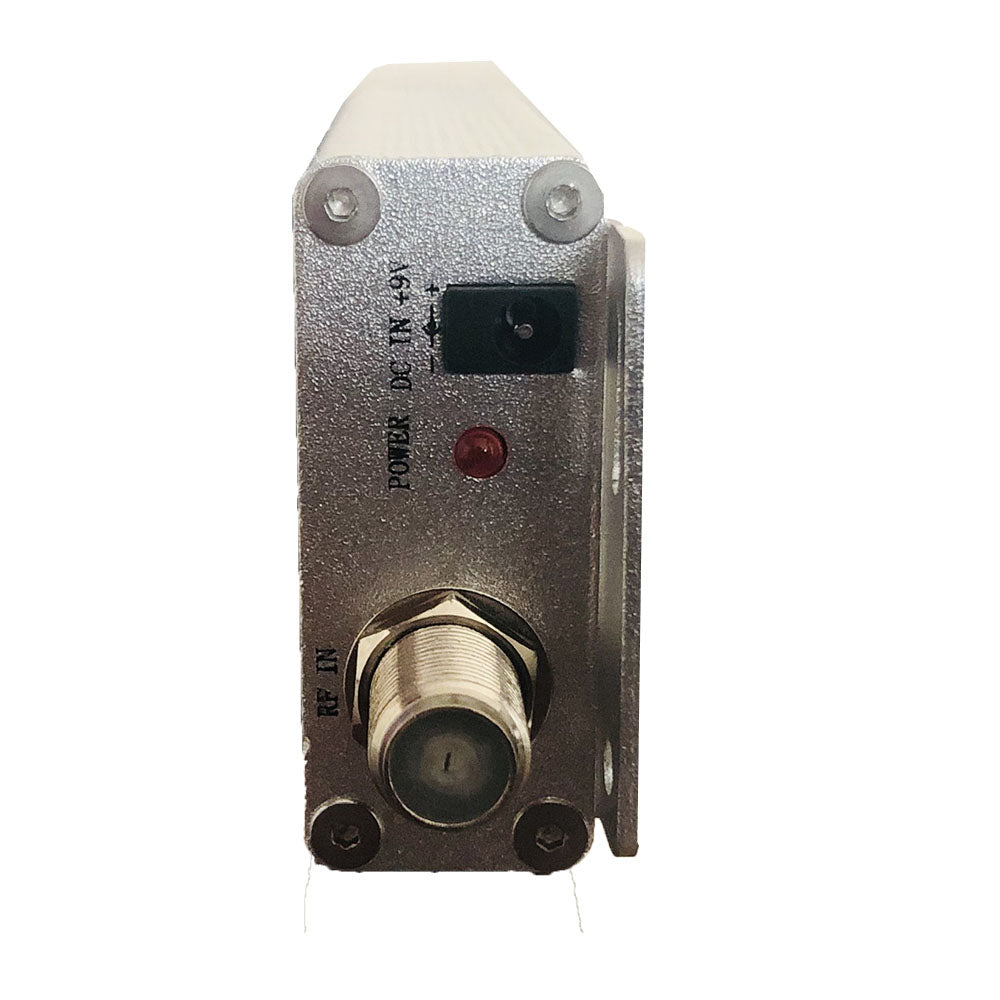

RF connector: 75Ω F-Male

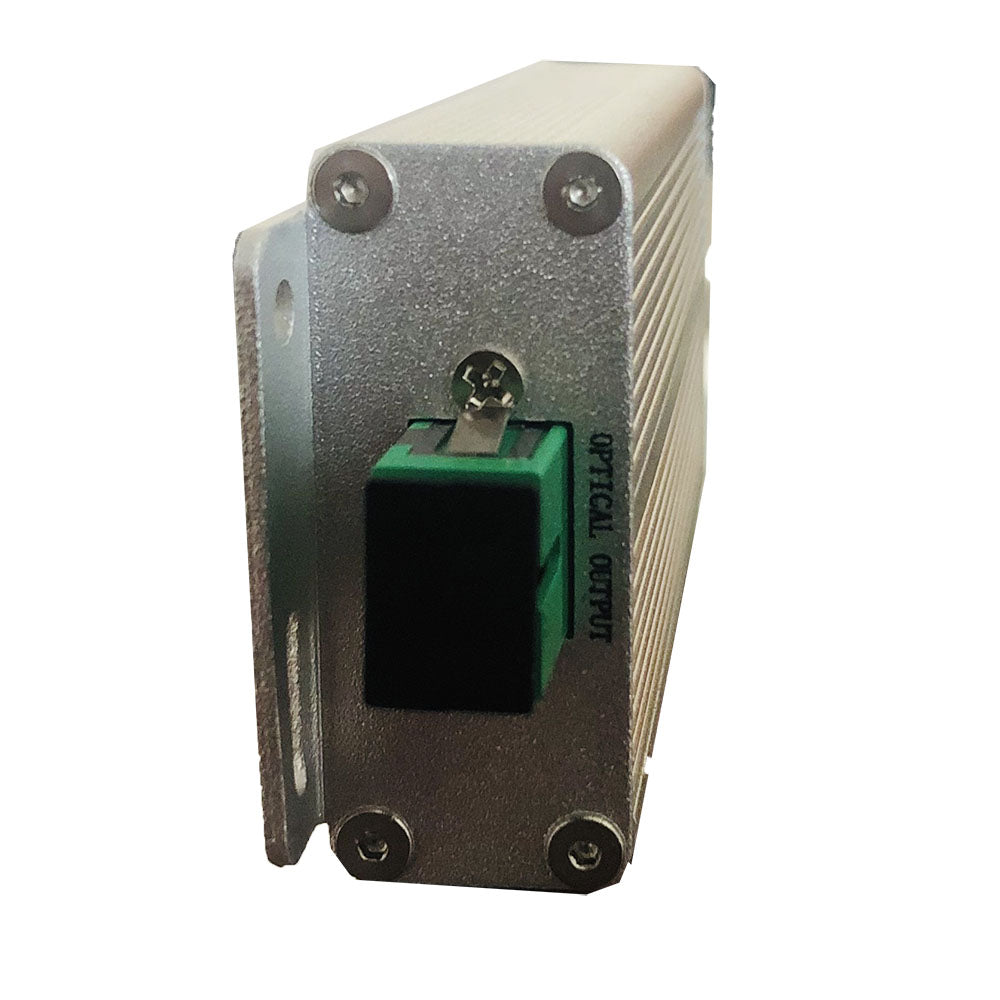

Optical Connector: SC/APC (customizable)
Fiber Type: Singlemode
RF Frequency Range: 40–1000 MHz
Optical Output Power: ≤10 dBm
Wavelength: 1310 nm & 1550 nm (customizable)
Optical return loss: >45 dB
RF Entry Level: 65–85 dBuV
Flatness: ±0.5 dB
C/N ratio: ≥52 dBc

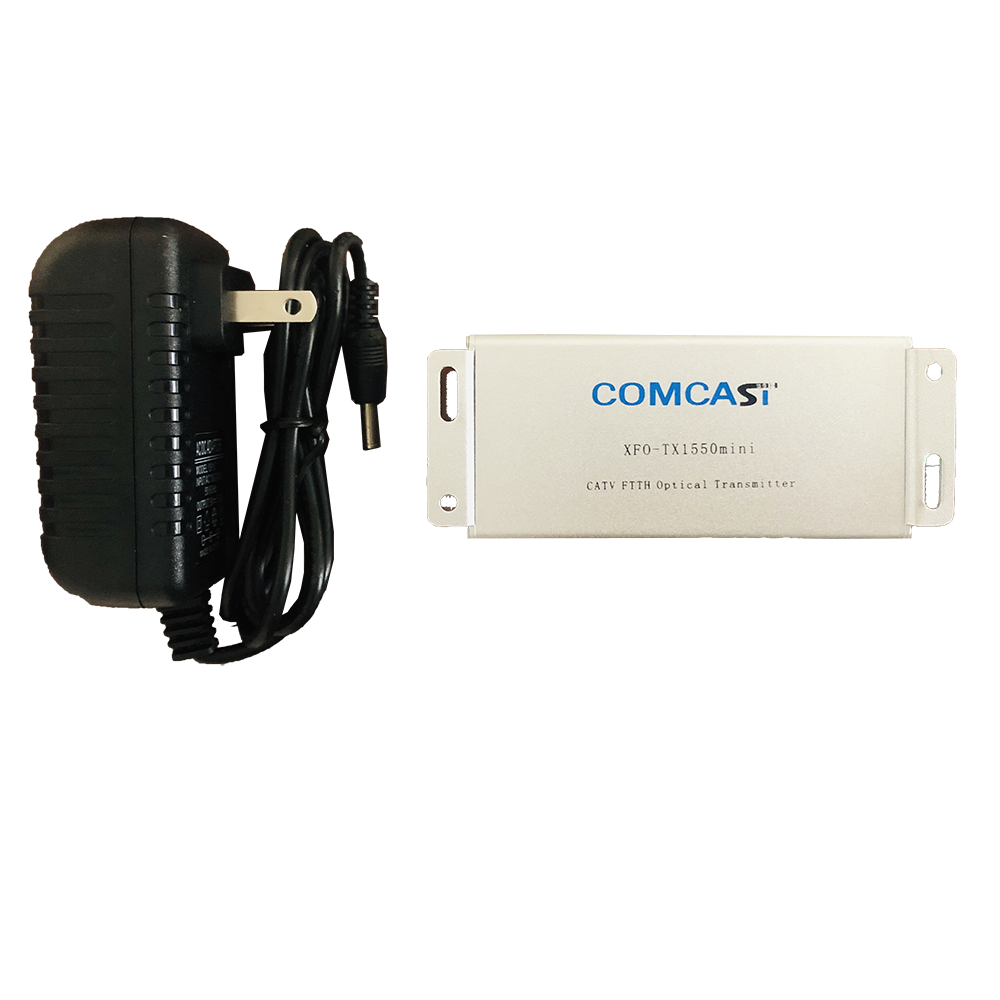

Feeding: 6–18 VDC (includes 9V DC adapter)
Energy consumption: <1.5 W
Dimensions:Length: 14 cm, Width: 13 cm, Height: 5 cm
Weight:0.2kg

TECHNICAL SHEET

Reliable transmission: Designed for FTTH, it converts RF signals into stable optical signals for fiber networks in homes and offices.
Quick installation: Its compact and lightweight size makes it easy to mount and connect even in tight spaces.
Excellent performance: Operates with a flatness of ±0.5 dB and an input level of 65-85 dBuV, ideal for high-quality transmissions.
Versatile compatibility: Compatible with single-mode fibers, SC/APC connectors and DC power supply between 6V and 18V.
Robust design: Aluminum housing for better heat dissipation and greater durability over time.

The optical transmitterXFO-TX1550nm miniIt has been developed to provide reliable FTTH solutions in compact spaces. Its design with active GaAs components allows for the transmission of signals up to 1000 MHz with high linearity and stability. Thanks to its low return loss and optical output power of up to 10 dBm, it is perfect for last-mile applications in residential or small commercial networks.

In addition, its aluminum casing ensures durability and ideal thermal performance, reducing the risk of overheating.XFO-TX1550miniNot only is it easy to install, but it offers a high-quality experience for those seeking an efficient and affordable optical transmission solution. Ideal for FTTH projects requiring compact technology without sacrificing performance.
