UTP CAT6 HCCA Cable - Indoor

DESCRIPTION

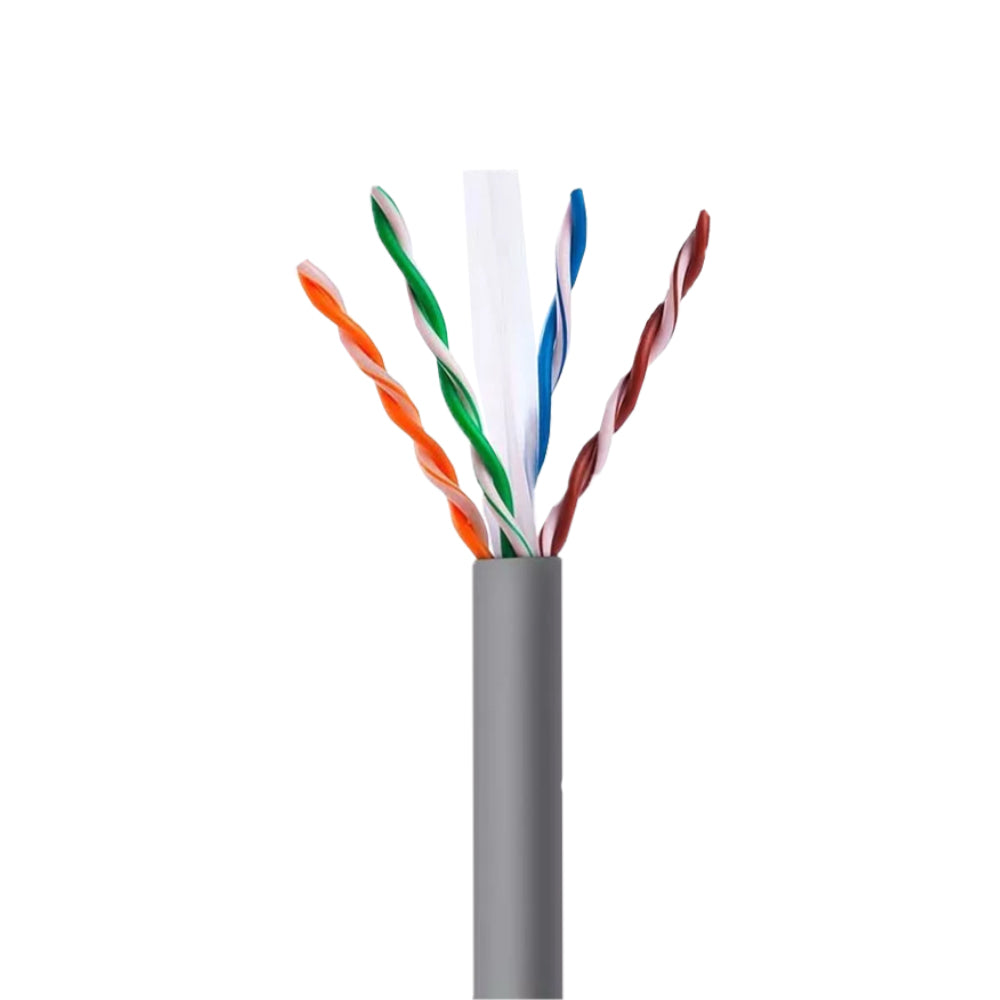

UTP CAT 6 CCA JELLY - INDOOR

Roll 305m (1000ft) Gray

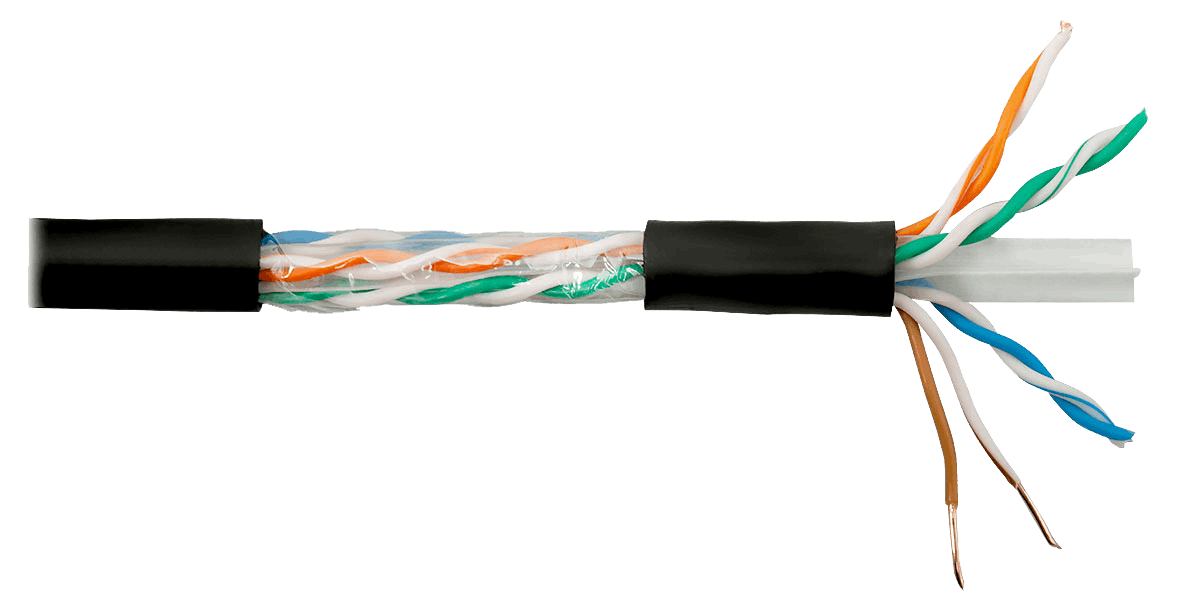

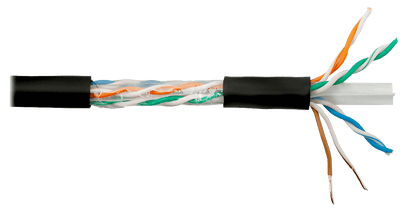

Using standard twisted construction design, small crosstalk of signal transmission
Upload and download in high-speed transfer.

• Bandwidth is standard 250 MHz
• Support 10-Gigabit Ethernet network transmission requirements.
• DC resistance (max): 11.2Ω/100m at 20°C
• Mutual capacitance (max): 5.6nF/100m
• Unbalanced capacitance (max): 330pF/100m
• Dielectric strength between conductors (min): 2.5kV/2s
• Impedance: 1-250MHz 100±15Ω
• Differential phase delay (max): 45ns/100m
• Operating temperature: -20~+60°C
• Permitted bend radius: 10 times diameter of the cable

DATASHEET
